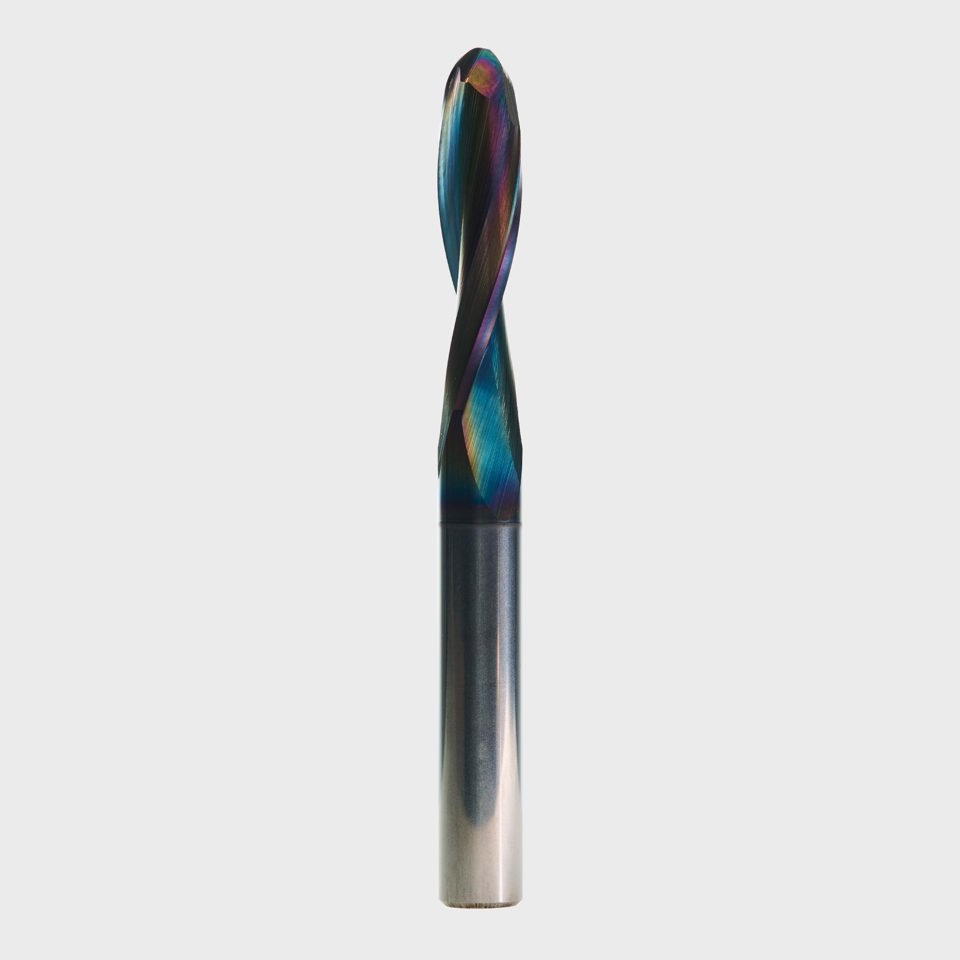

HW Ball End Spiral 2 Wings 10x52x100 S10 Coated
$148.00
HW Ball End Spiral 2 Wings 10x52x100 S10 Coated.
This tool is designed for grooving, contouring applications in Solid Timber. It is suited to production machining where consistency matters.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.

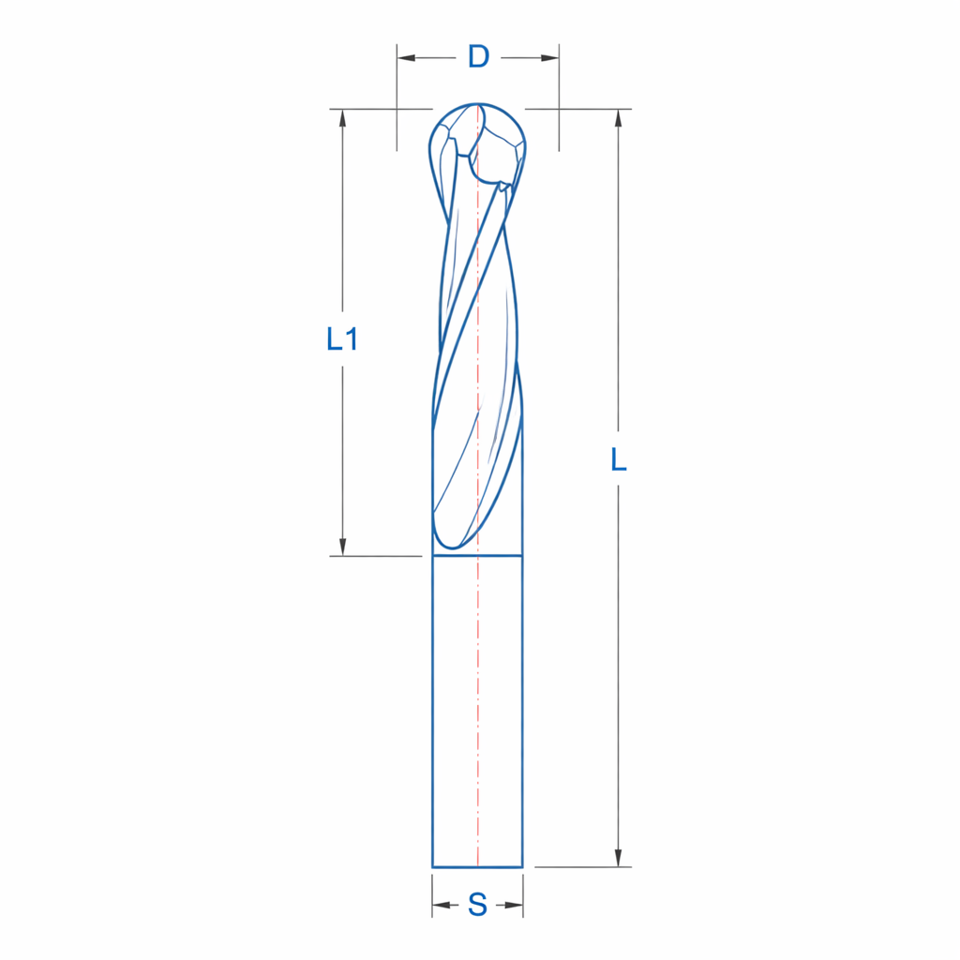

Specifications
- Cutter Diameter (D): 10 mm.
- Usable Cutting Length (L1): 52 mm.
- Total Length (L): 100 mm.
- Shank Diameter (DS): 10 mm.
- Flute Count (Z): 2 wings.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- Solid Timber
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Grooving, Contouring applications.
- Machining Solid Timber.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
