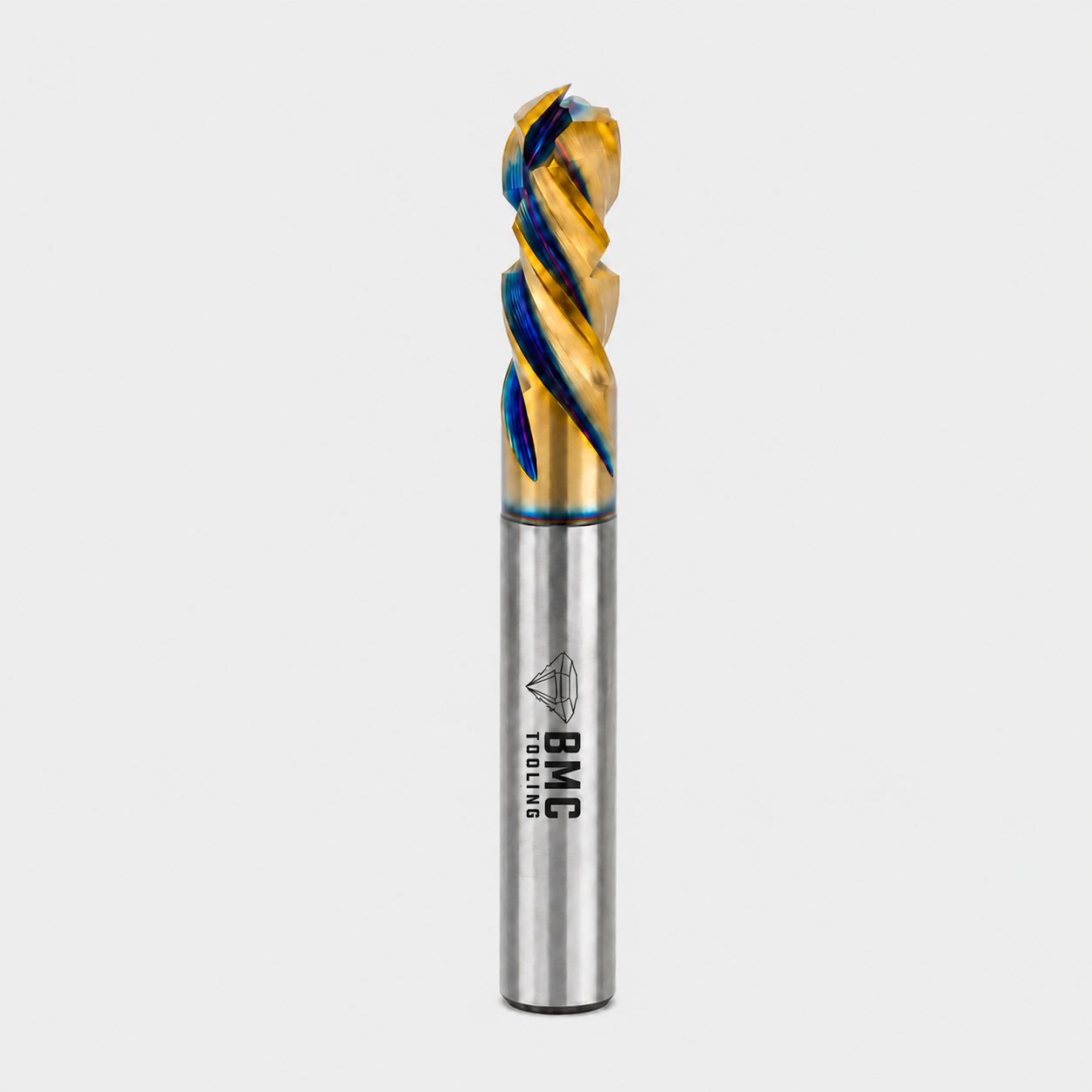

HW Compression Cutter 4 Wings 10×22×70 S10 Coated
$120.00
HW Compression Cutter 4 Wings 10×22×70 S10 Coated.
This tool is designed for nesting applications in MDF, HMR. It is suited to production machining where consistency matters.
- Compression geometry supports clean top and bottom edges.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.
Specifications
- Cutter Diameter (D): 10 mm.
- Usable Cutting Length (L1): 22 mm.
- Upcut (L3): 6 mm.
- Total Length (L): 70 mm.
- Shank Diameter (DS): 10 mm.
- Flute Count (Z): 4 wings.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- MDF.
- HMR.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Nesting applications.
- Machining MDF, HMR.
Application notes:
- Use stable workholding to minimise vibration.
- Match feed and depth of cut to panel type.
