HW Saw Blade Aluminium 650x5x40 Z144
$1,485.00

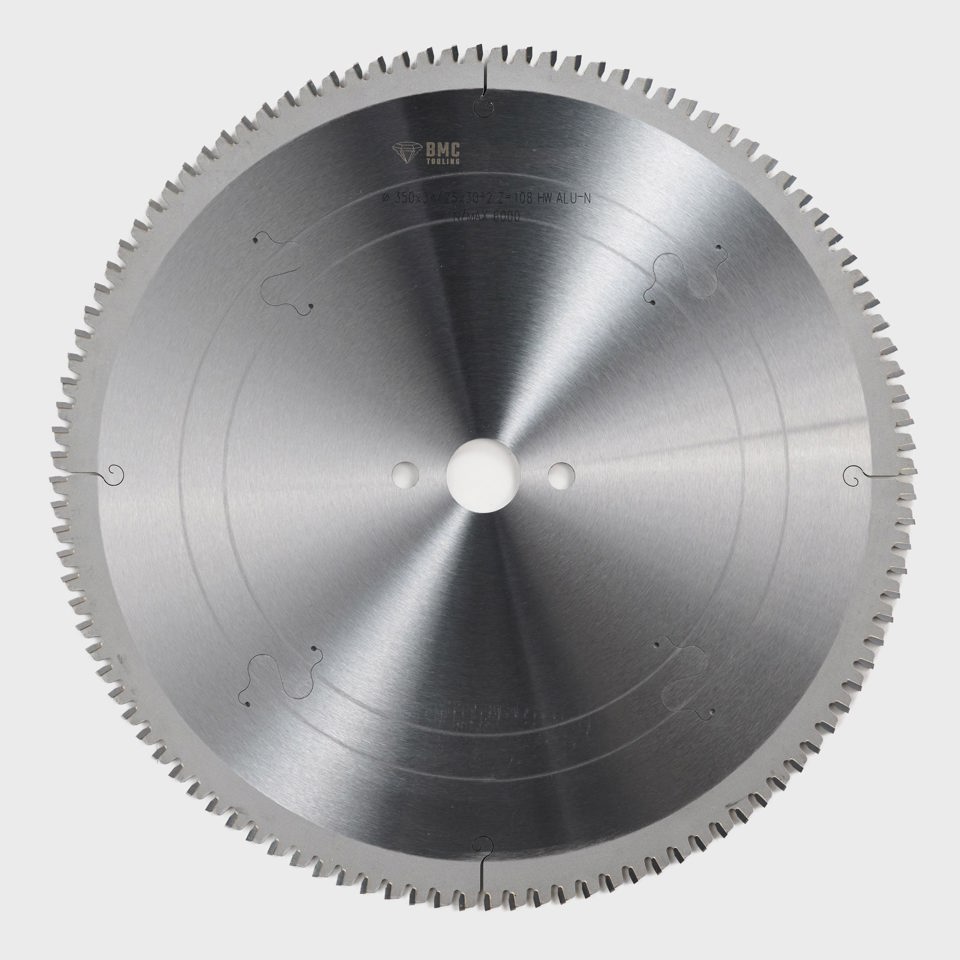

HW Saw Blade Aluminium 650x5x40 Z144.
This carbide tipped saw blade is designed for cutting aluminium and light alloy sections where dimensional accuracy and clean edges are required. The high tooth count supports smooth cutting performance in non-ferrous materials.
- Designed for aluminium and light alloys.
- High tooth count for improved surface finish.
- Suitable for plastic and acrylic materials.
- Built for production sizing applications.

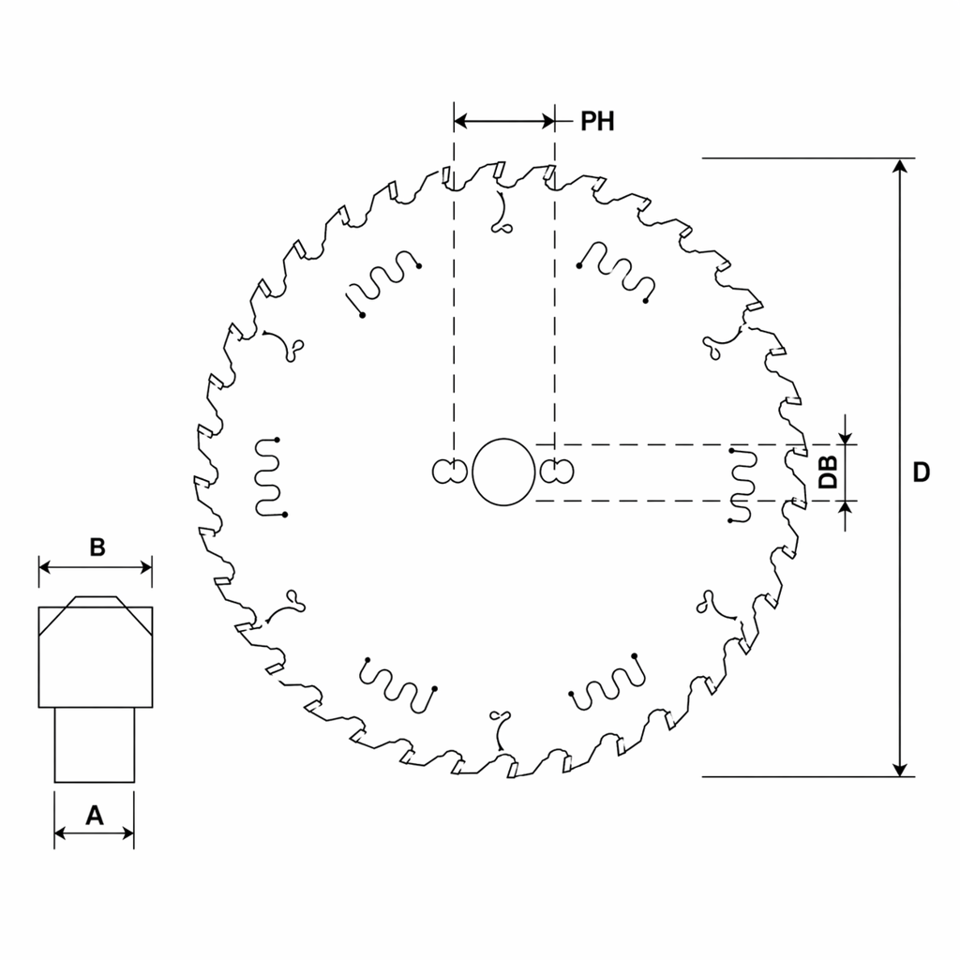

Specifications
- Blade Diameter (D): 650 mm.
- Bore Diameter (DB): 40 mm.
- Kerf Width (B): 5 mm.
- Tooth Count (Z): 144 teeth.
- Cutting Angle (γ°): 10°
- Cutting Material: HW (Tungsten Carbide tipped).
Material Compatibility
- Aluminium & Light Alloys.
- Plastic and Acrylic.
Machine Compatibility
- Panel saws configured for non-ferrous cutting.
- Mitre saws suitable for aluminium.
- Industrial saws with 40 mm arbor.
Recommended Application
Recommended for:
- Sizing aluminium profiles and extrusions.
- Cutting non-ferrous materials requiring clean edges.
Application notes:
- Use correct blade speed for aluminium cutting.
- Ensure secure material clamping to minimise vibration.
