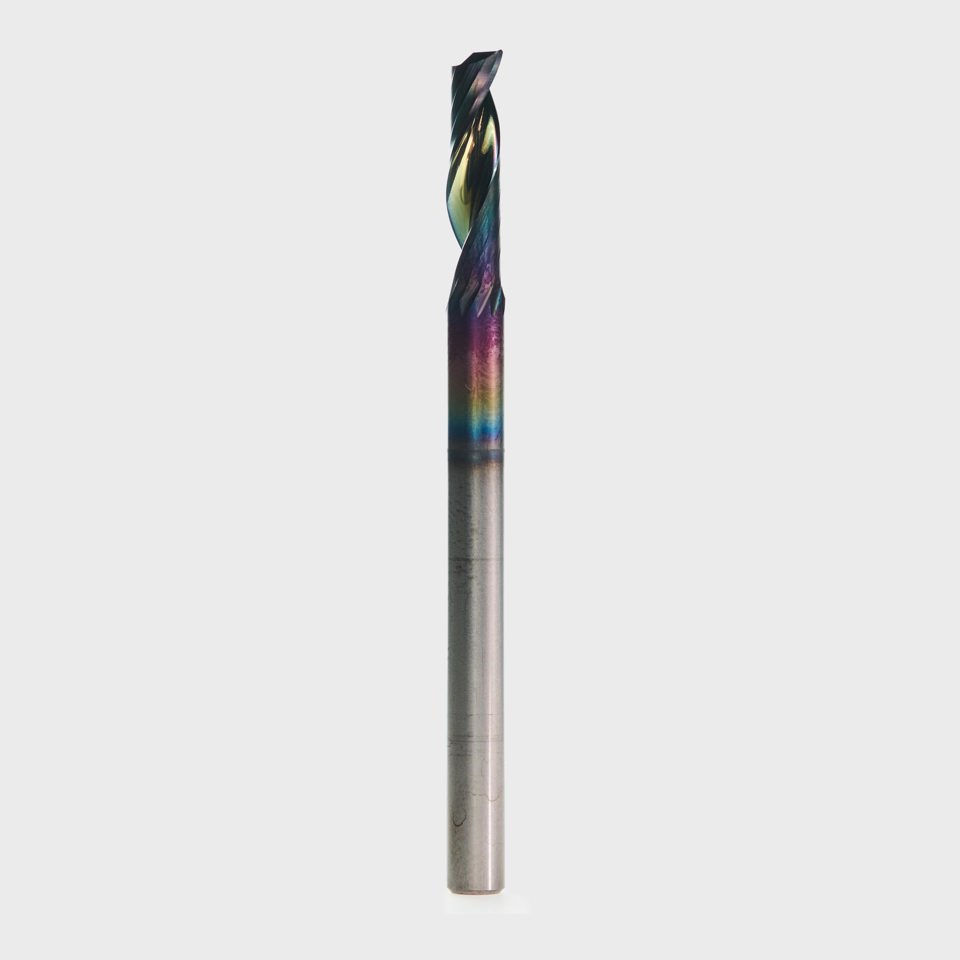

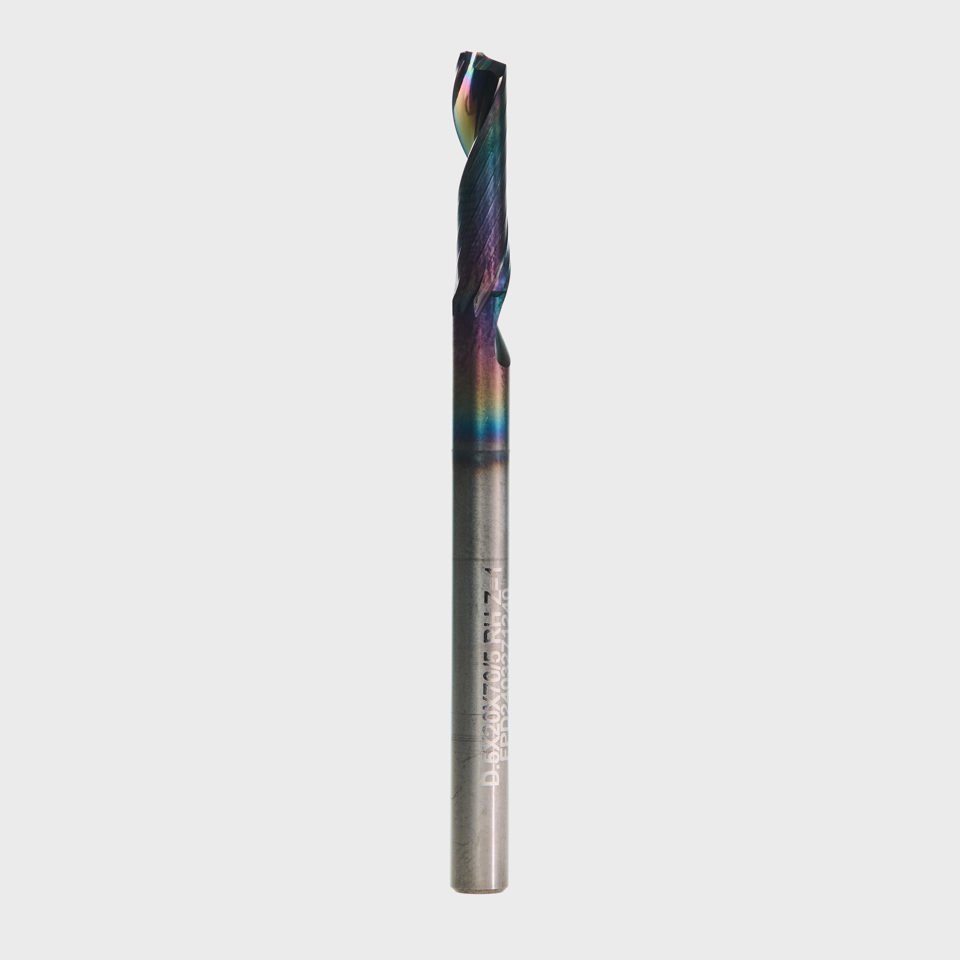

HW Single Flute Upcut Alu/PVC 5x14x80 S8 Coated
$140.00
HW Single Flute Upcut Alu/PVC 5x14x80 S8 Coated.
This tool is designed for pocketing applications in Aluminium, Light Alloys, Plastic, Acrylic. It is suited to production machining where consistency matters.
- Upcut geometry supports chip evacuation.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.

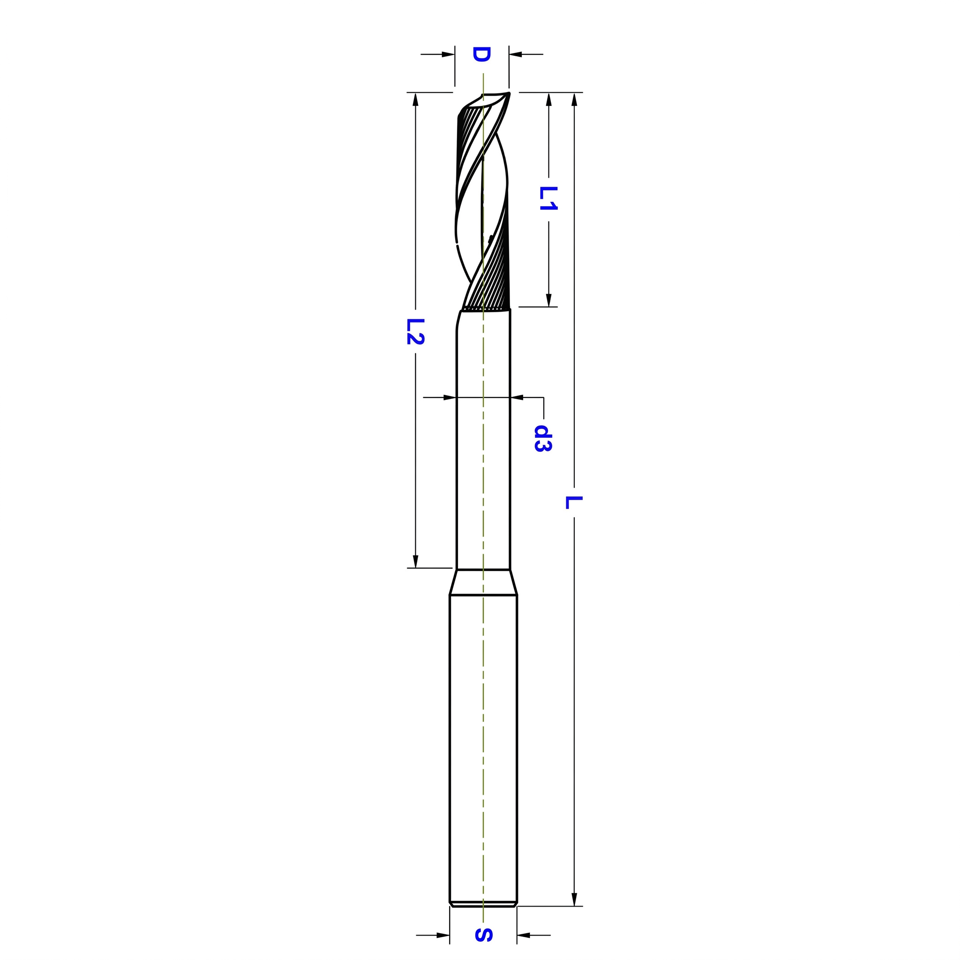

Specifications
- Cutter Diameter (D): 5 mm.
- Usable Cutting Length (L1): 14 mm.
- Total Length (L): 80 mm.
- Shank Diameter (DS): 8 mm.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- Aluminium.
- Light Alloys.
- Plastic.
- Acrylic.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Pocketing applications.
- Machining Aluminium, Light Alloys, Plastic and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
