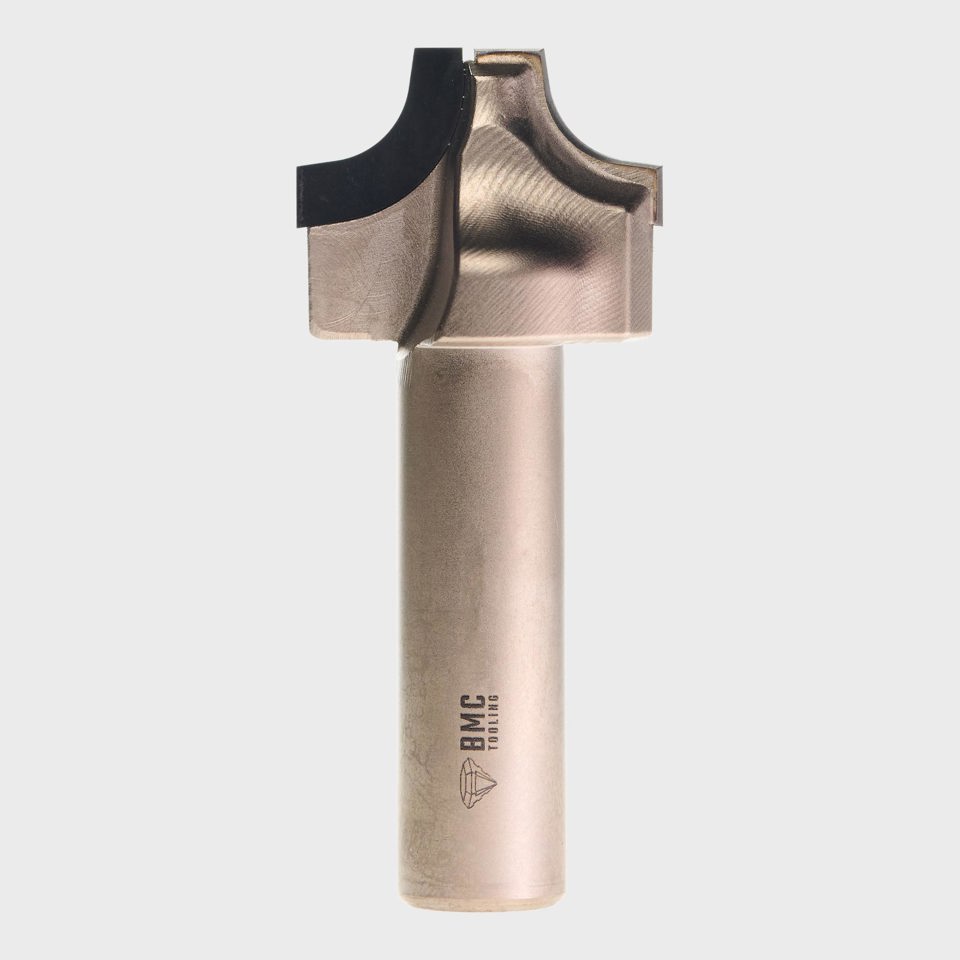

PCD ¼ Radius 15mm Z2 50×17.5×80 S20
$610.20
PCD ¼ Radius 15mm Z2 50×17.5×80 S20.

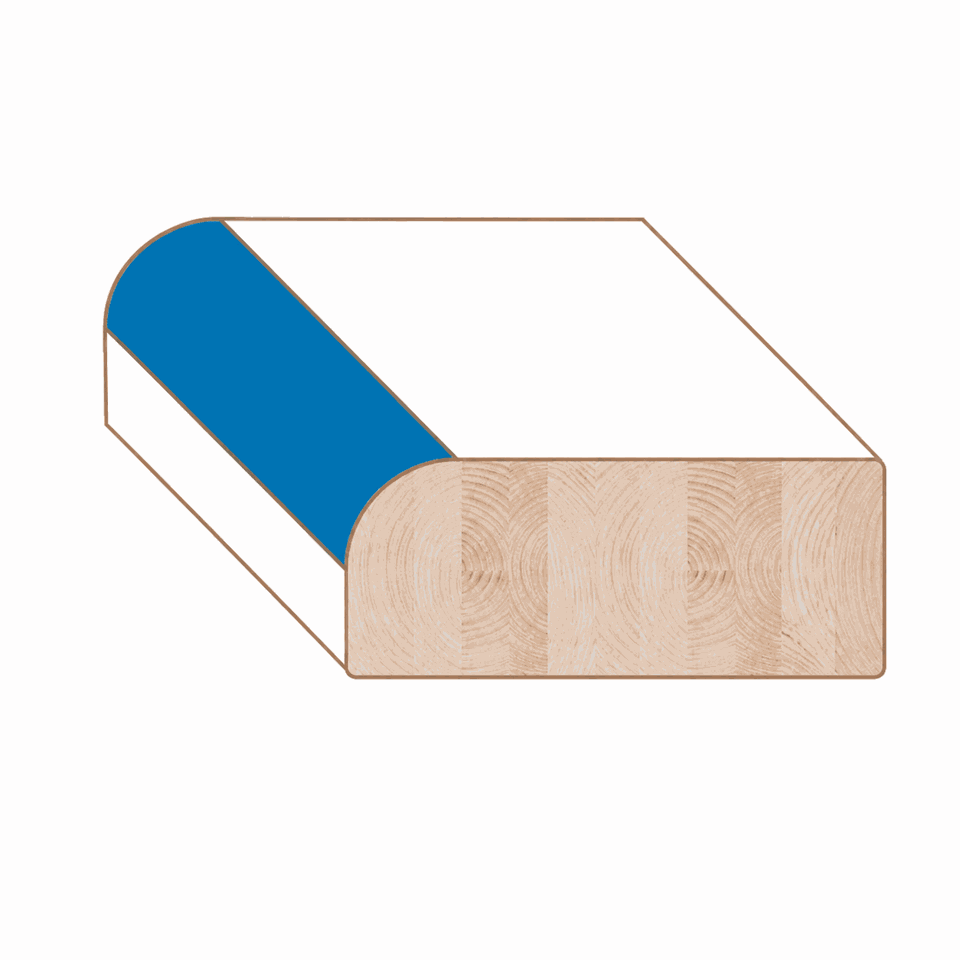

This tool is designed for radius, decorative panels, cabinet doors applications in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber, Composite Materials, HPL, Compact Laminates, Corian, Trespa. It is suited to production machining where consistency matters.
- PCD cutting edges support extended tool life.
- Rotation: Right-hand.

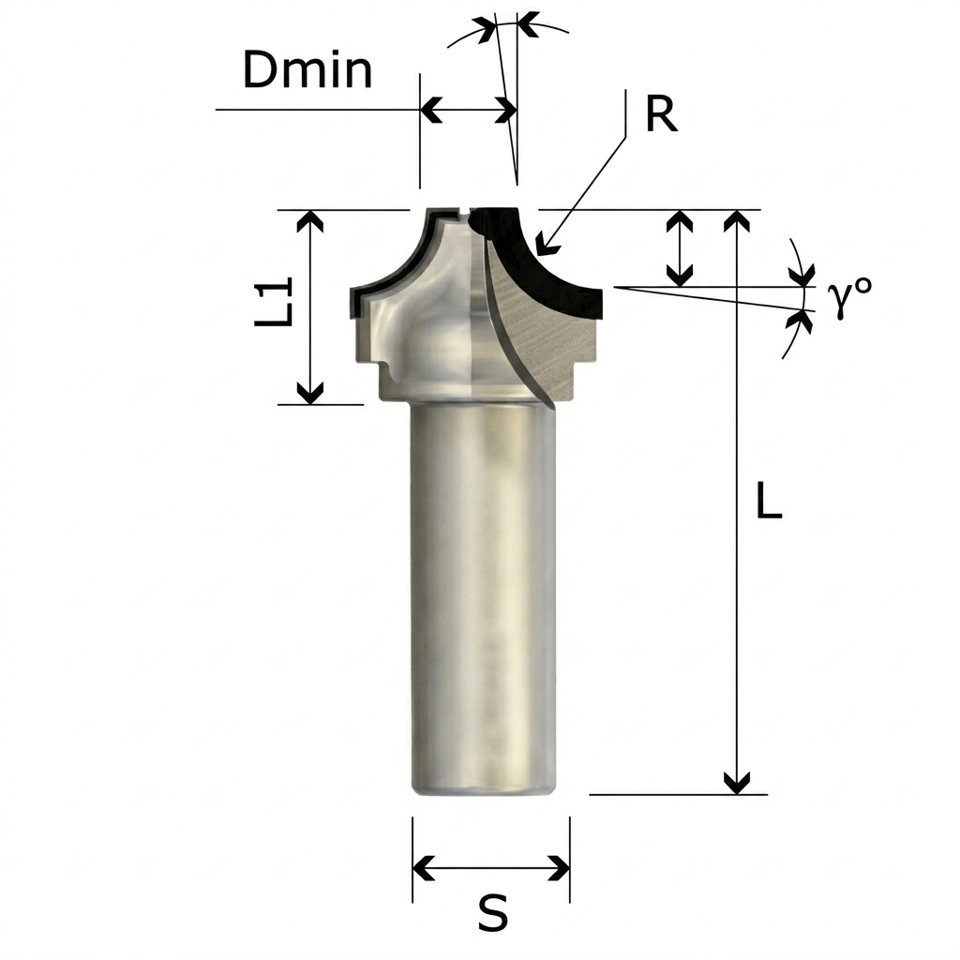

Specifications
- Cutter Diameter (D): 50 mm.
- Usable Cutting Length (L1): 17.5 mm.
- Total Length (L): 80 mm.
- Shank Diameter (DS): 20 mm.
- Radius (R): 15 mm.
- Flute Count (Z): 2.
- Cutting Material: PCD (Polycrystalline Diamond).
- Rotation: Right-hand.
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
- Composite Materials.
- HPL.
- Compact Laminates.
- Corian.
- Trespa.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Radius, Decorative Panels, Cabinet Doors applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
