PCD Conical Scorer 120×2.8/4 B20 Z20 H4
$505.80
The PCD Conical Scorer 120×2.8/4 B20 Z20 H4 is designed for precision scoring on panel saws when processing MDF, HMR, plywood, and veneered materials.
Featuring PCD (Polycrystalline Diamond) cutting edges and a conical body design, this scorer allows controlled adjustment of scoring width to match the kerf of the main blade. It delivers clean underside cuts in laminated and delicate coated panels, reducing chipping and breakout during sizing operations.
- PCD cutting edges for maximum wear resistance in abrasive materials.
- Conical design allows adjustable scoring width.
- Prevents underside chipping in laminated and veneered panels.
- Designed for high-precision panel sizing applications.

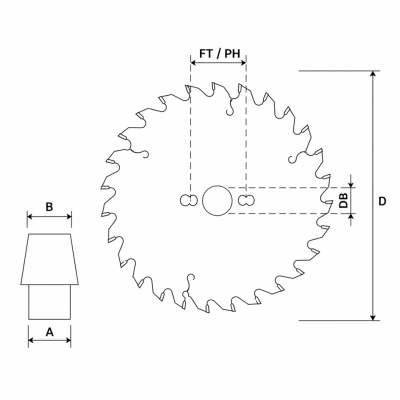

Specifications
- Blade Diameter: 120 mm.
- Kerf Range: 2.8 , 4 mm (conical).
- Bore Size: 20 mm (B20).
- Tooth Count: 20 teeth.
- Cutting Material: PCD (Polycrystalline Diamond).
- Application Type: Panel saw scoring.
Material Compatibility
- MDF (Medium Density Fibreboard).
- HMR board (Moisture-resistant MDF).
- Plywood.
- Laminated panels.
- Veneer and delicate coated board, where applicable.
Machine Compatibility
- Panel saws with scoring units.
- Beam saws equipped with scoring assemblies.
- Machines with compatible scoring spindle and bore size.
Recommended Application
Recommended for:
- Scoring laminated MDF, HMR, plywood, and veneered panels.
- Applications requiring clean underside edges in coated materials.
Application notes:
- Adjust scoring width to match the kerf of the main blade.
- Ensure correct alignment between scoring and main blade for optimal finish.
