PCD Dowel Drill Bit HPL 8x32x70 S10 LH
$153.00
The PCD Dowel Drill Bit is specially designed for precision dowel drilling in high-density and composite panels, including HPL (compact laminate), Corian®, Trespa®, and other engineered composite materials. It delivers clean, accurate, and burr-free holes, even in very hard or abrasive materials.
Featuring a steel body and PCD cutting edges, this drill bit provides exceptional wear resistance and long tool life, making it ideal for high-volume CNC or manual drilling applications. Its special geometry ensures efficient chip evacuation, reduced heat, and consistent hole quality, even in demanding production environments.
With a total length of 70mm, it is compatible with standard CNC and manual drilling machines.
- PCD cutting edges support extended tool life.
- Rotation: Left-hand.
Specifications

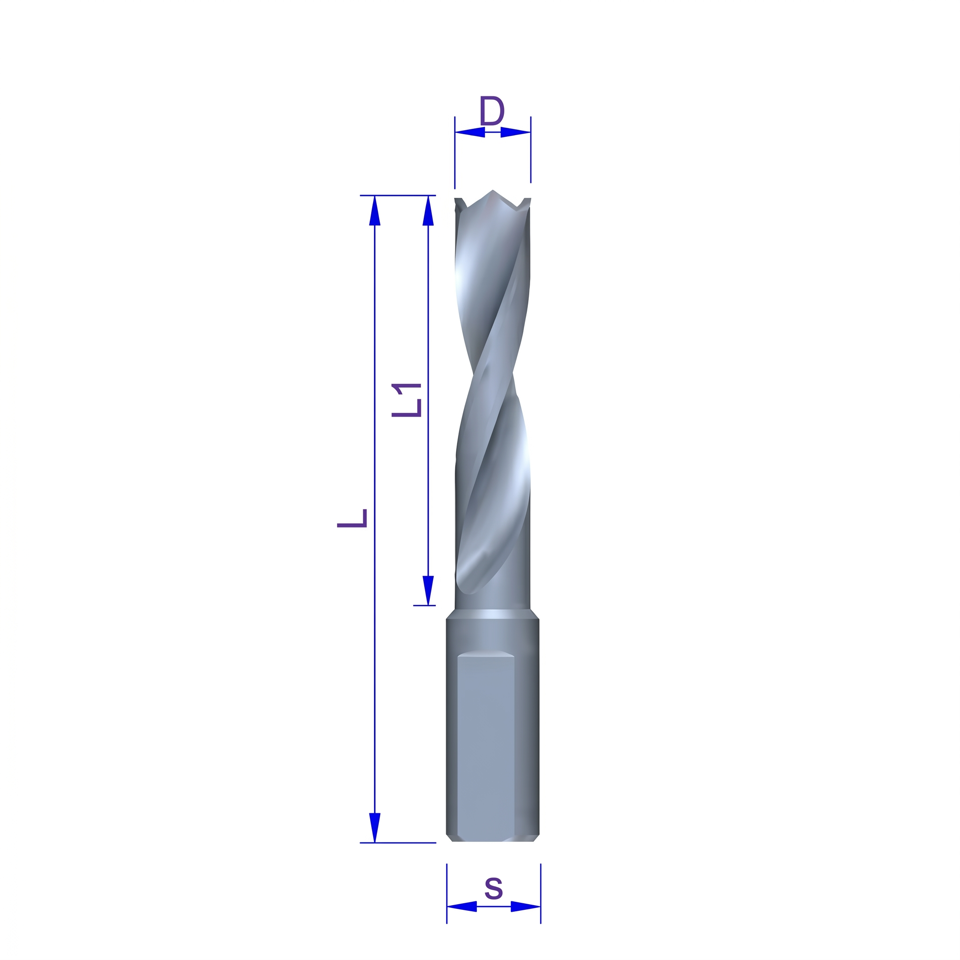

- Cutter Diameter: 8 mm.
- Usable Cutting Length: 32 mm.
- Total Length: 70 mm.
- Shank Diameter: 10 mm.
- Cutting Material: PCD (Polycrystalline Diamond).
- Rotation: Left-hand.
Material Compatibility
- HPL.
- Compact Laminates.
- Composite Materials.
- Corian.
- Trespa.
Machine Compatibility
- CNC drilling machines.
- Semi-Automatic Drilling Machines.
- Manual Drilling Machines.
Recommended Application
Recommended for:
- Drilling applications.
- Machining HPL, Compact Laminates, Composite Materials and more.
Application notes:
- Use correct spindle speed and pecking strategy if required.
- Confirm point type and machine setup for the operation.
