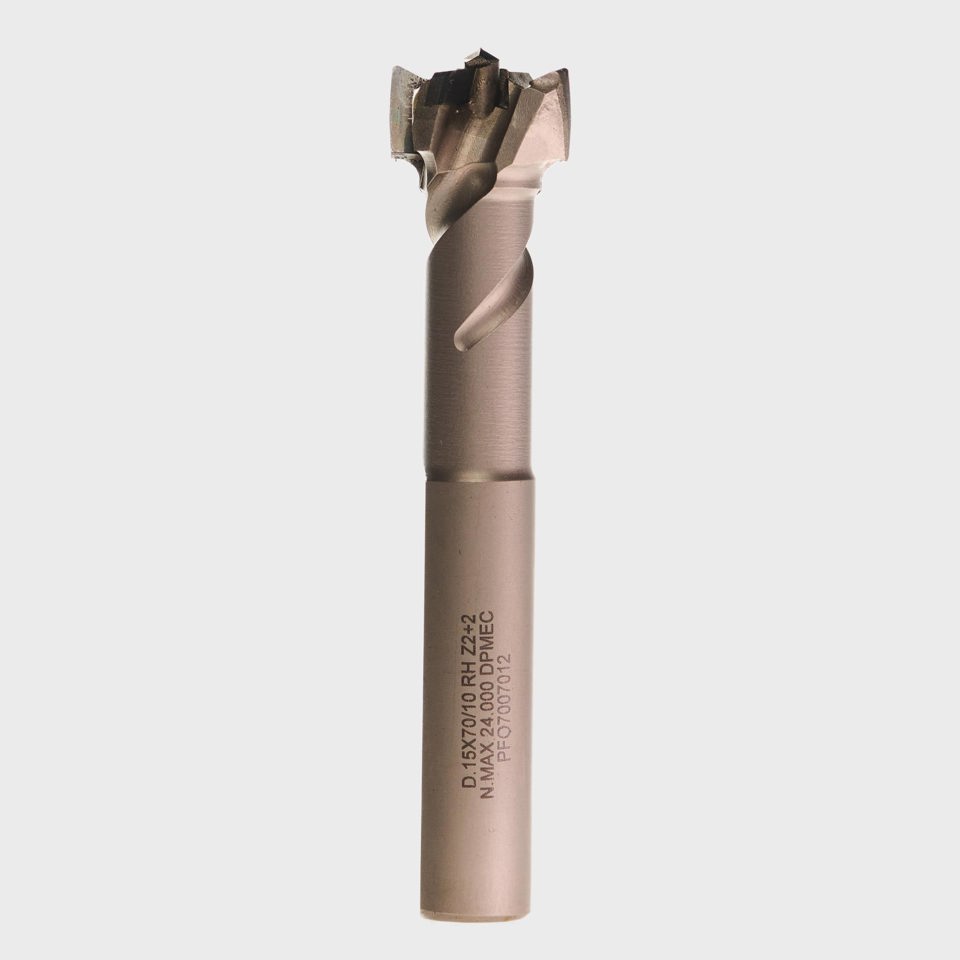

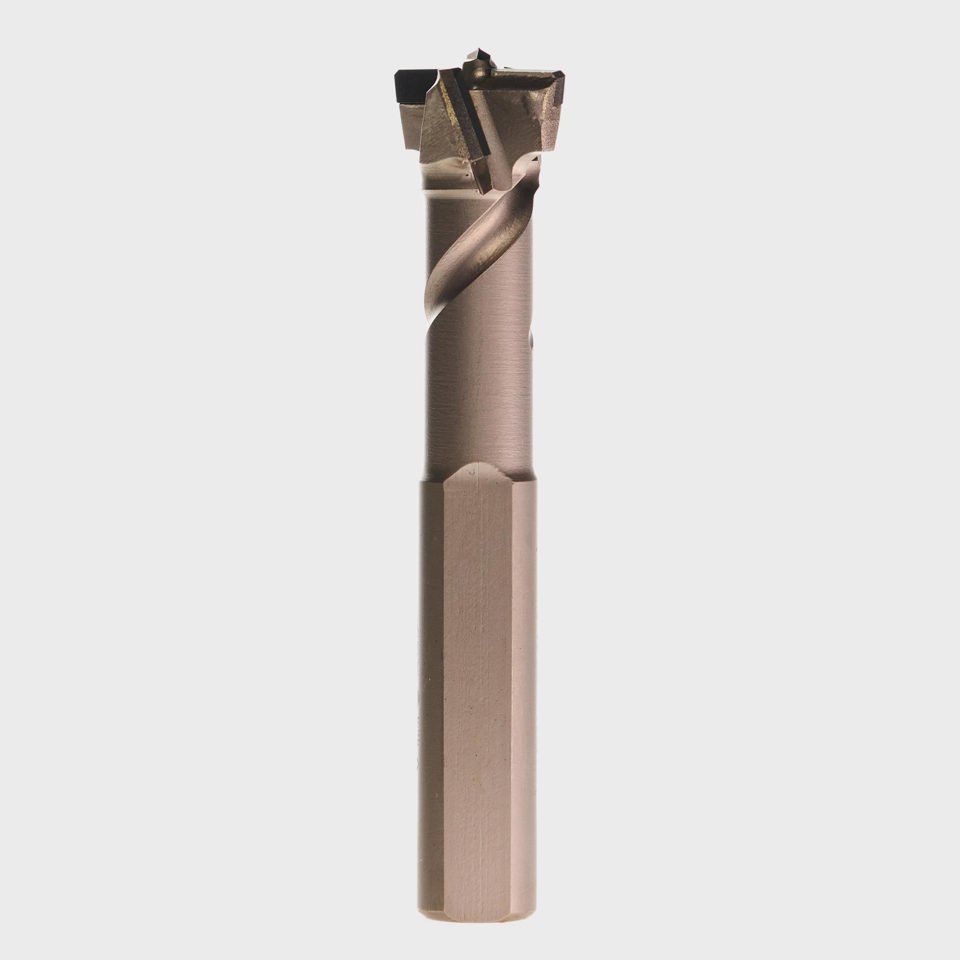

PCD Hinge Bit Z2+2 15x40x70 S10 RH
$195.00
This diamond drill bit is designed specifically for blind hole drilling in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber, Composite Materials, HPL, Compact Laminates, Corian, Trespa.
The combination of PCD cutting edges and HW center point provides long tool life, exceptional rigidity, and consistent performance, even in high-volume production environments, making it perfect for cabinet and furniture manufacturing..
- Adjustable Center Point
- PCD cutting edges support extended tool life.
- Rotation: Left-hand.

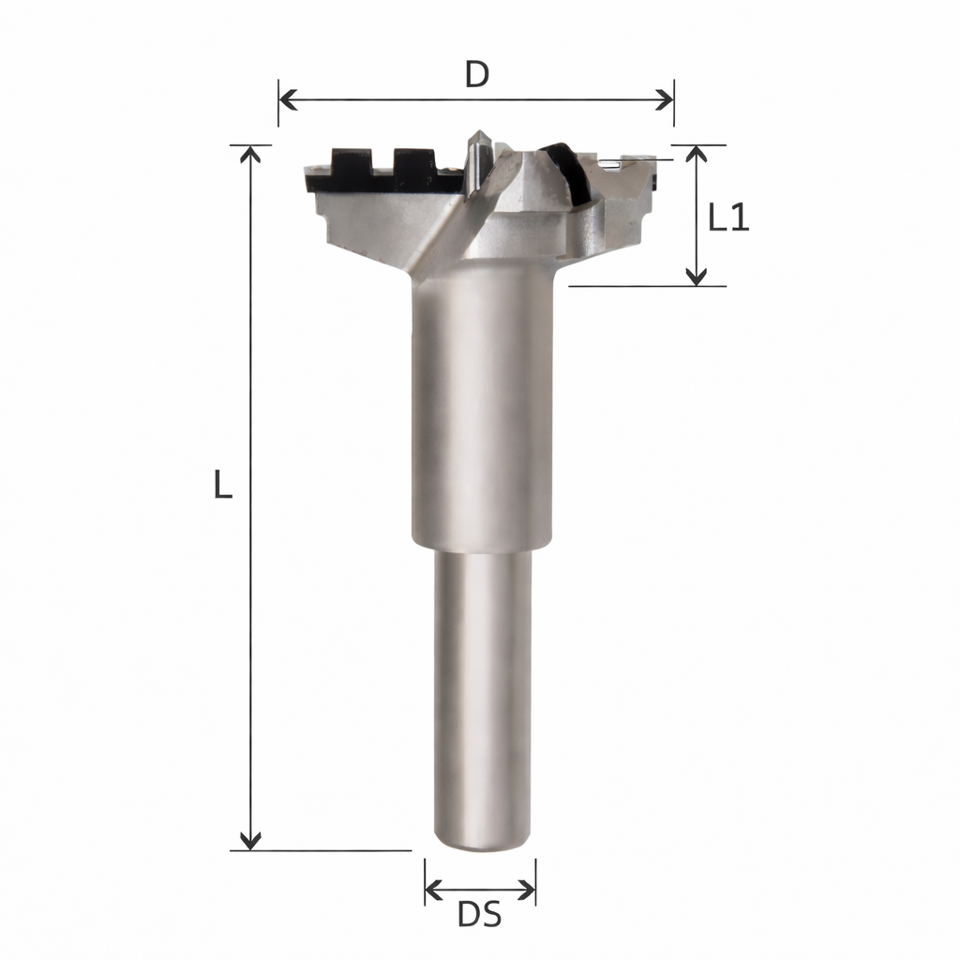

Specifications
- Cutter Diameter: 15 mm.
- Usable Cutting Length: 40 mm.
- Total Length: 70 mm.
- Shank Diameter: 10 mm.
- Flute Count: 2+2.
- Cutting Material: PCD (Polycrystalline Diamond).
- Rotation: Right-hand.
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
- Composite Materials.
- HPL.
- Compact Laminates.
- Corian.
- Trespa.
Machine Compatibility
- CNC drilling machines.
- Semi-Automatic Drilling Machines.
- Manual Drilling Machines.
Recommended Application
Recommended for:
- Drilling applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Use correct spindle speed and pecking strategy if required.
- Confirm point type and machine setup for the operation.
