PCD HPL Cutter Finishing Z4 12x19x70 S12
$540.00

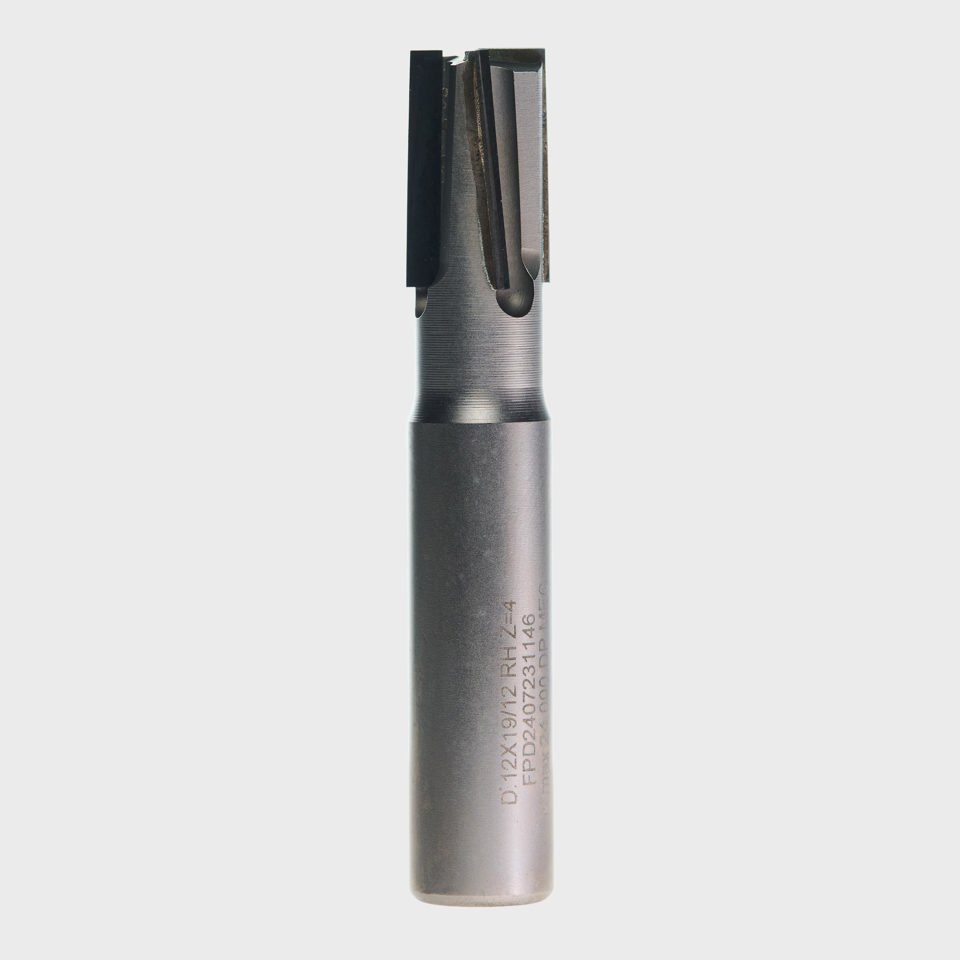

PCD HPL Cutter Powercut 3 Finish Z4 12×19×70 S12.
This tool is designed for nesting, superior finish applications in Composite Materials, HPL, Compact Laminates, Corian, Trespa, Evostone. It is suited to production machining where consistency matters.
- Finishing geometry supports improved surface finish.
- PCD cutting edges support extended tool life.
- Rotation: Right-hand.

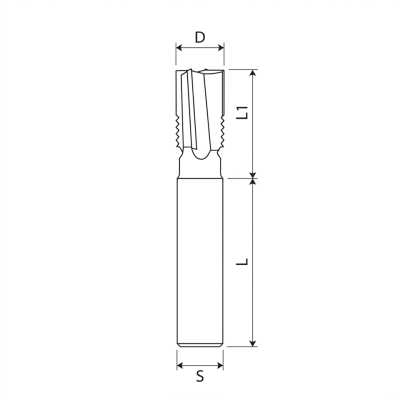

Specifications
- Cutter Diameter (D): 12 mm.
- Usable Cutting Length (L1): 19 mm.
- Total Length (L): 70 mm.
- Shank Diameter (DS): 12 mm.
- Tooth Configuration (Z): Z4.
- Cutting Material: PCD (Polycrystalline Diamond).
- Rotation: Right-hand.
Material Compatibility
- Composite Materials.
- HPL.
- Compact Laminates.
- Corian.
- Trespa.
- Evostone.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Nesting, Superior Finish applications.
- Machining Composite Materials, HPL, Compact Laminates and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
