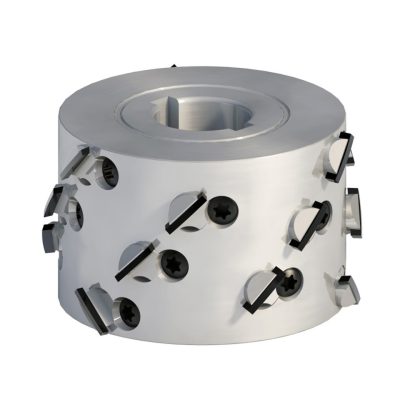

PCD Insert Cutter Head Flex 2 80×65 Z3+3 45° RH
$1,597.00
PCD Insert Cutter Head Flex 2 80×65 Z3+3 45° RH.
This tool is designed for profiling, superior finish, contouring, solid timber moulding, door cutting applications in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber. It is suited to production machining where consistency matters.
- PCD cutting edges support extended tool life.

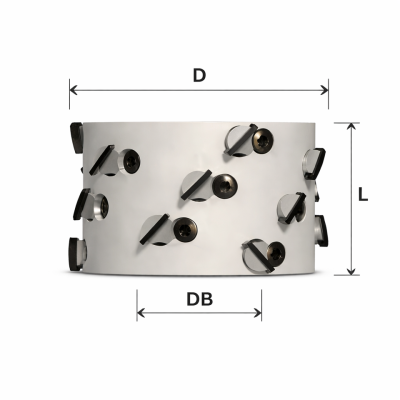

Specifications
- Cutter Head Diameter (D): 80 mm.
- Body Height (L): 65 mm.
- Flute Count (Z): 3+3.
- Angle (γ°): 45°.
- Rotation: Right-hand.
- Cutting Material: PCD (Polycrystalline Diamond).
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Profiling, Superior Finish, Contouring, Solid Timber Moulding, Door Cutting applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
