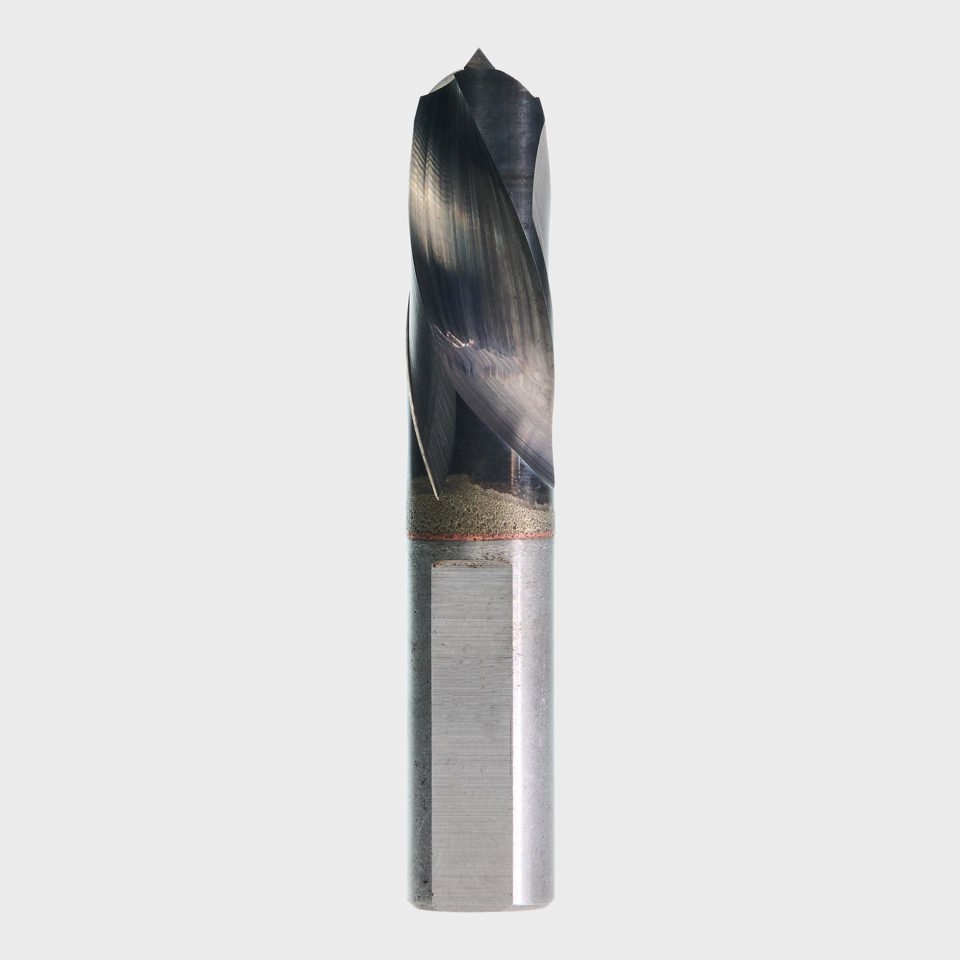

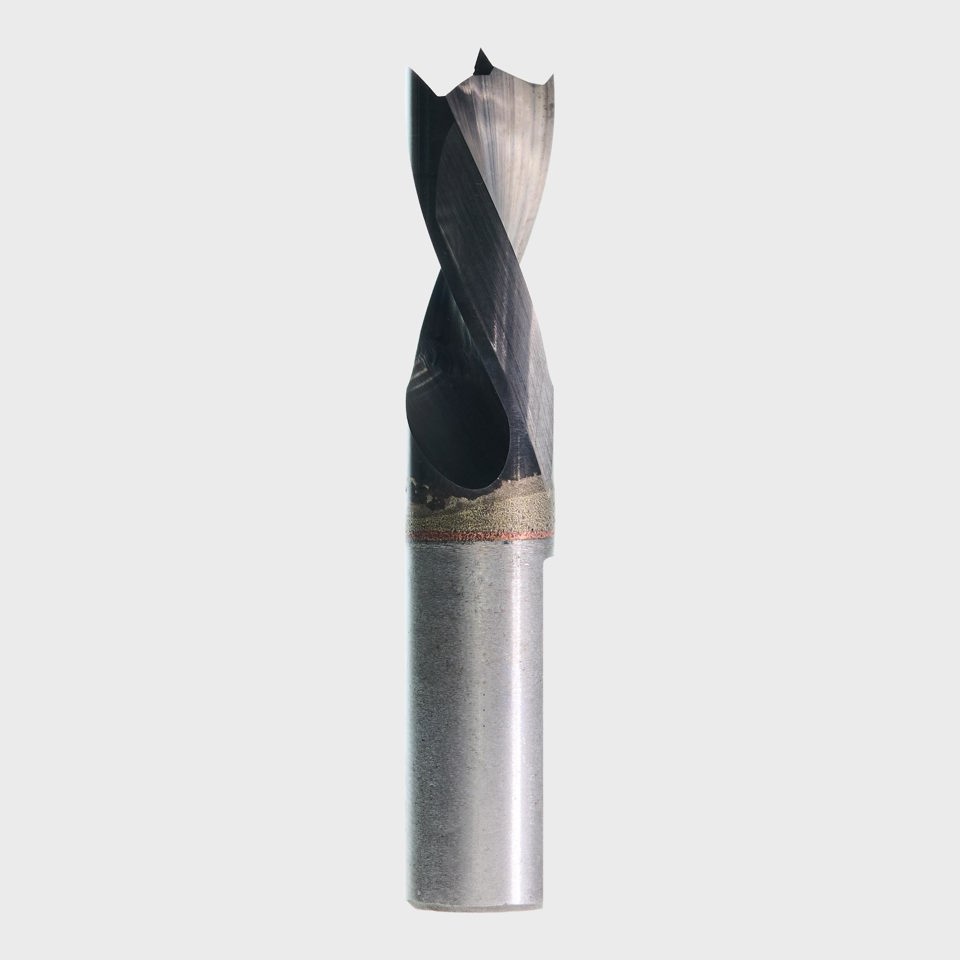

Solid Carbide Dowel Drill Bit 8x22x57.5 S10 LH
$94.00
This tool is designed for precision drilling of dowel holes in MDF, HMR, Plywood, Veneer, Delicate Coating and Solid Timber. It is suited to production machining where consistency matters.
With a total length of 57.5mm, it is compatible with standard CNC and manual drilling machines.
- Rotation: Left-hand.

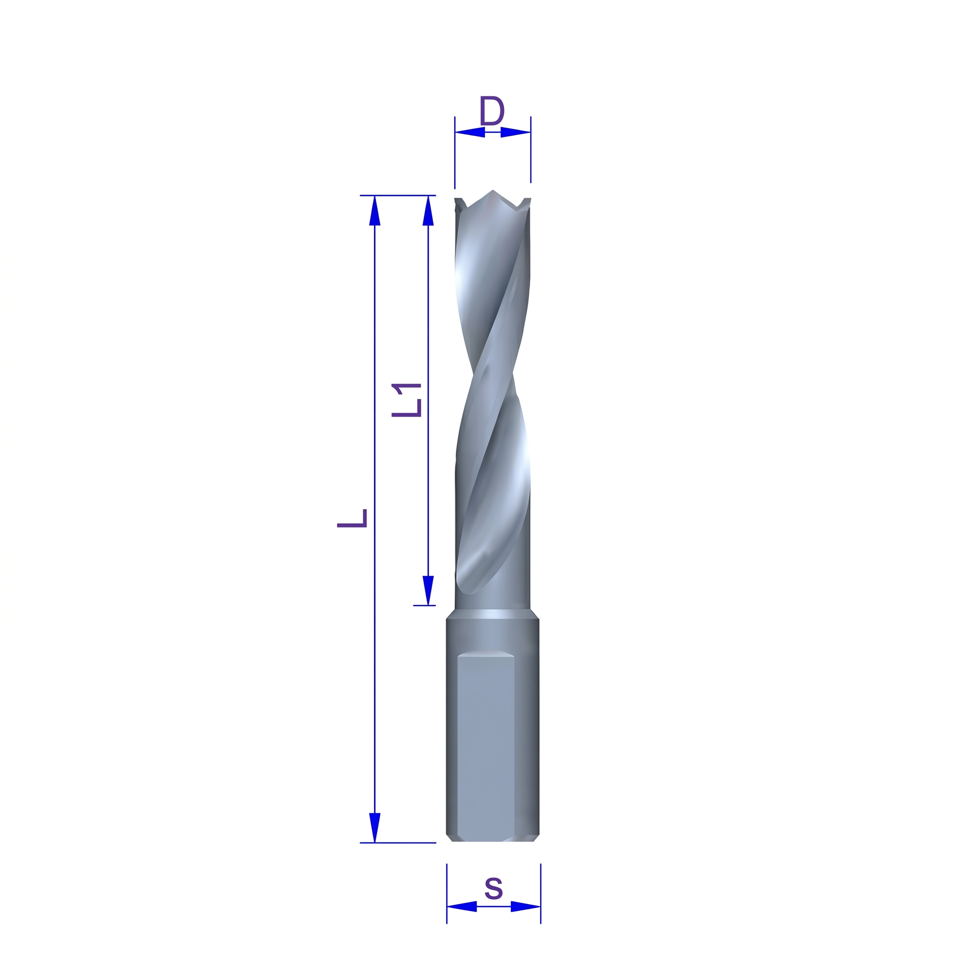

Specifications
- Cutter Diameter: 8 mm.
- Usable Cutting Length: 22 mm.
- Total Length: 57.5 mm.
- Shank Diameter: 10 mm.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Left-hand.
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- CNC drilling machines.
- Semi-Automatic Drilling Machines.
- Manual Drilling Machines.
Recommended Application
Recommended for:
- Drilling applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Use correct spindle speed and pecking strategy if required.
- Confirm point type and machine setup for the operation.
