HW Compression Cutter 2 Wings 10×22×70 S10 Coated
$110.00
HW Compression Cutter 2 Wings 10×22 S10 Coated.
The BMC Tooling Compression Spiral 2 Wing Cutter is specifically designed for flatbed CNC machines to deliver a clean, chip-free finish on both the top and bottom surfaces in a single pass.
Optimised for machining particleboard and MDF, this cutter allows very high feed speeds while maintaining an exceptional edge finish. The advanced compression geometry prevents chipping on both faces, making it ideal for laminated and veneered materials where quality and consistency are critical.
The cutter is coated with BMC Tooling’s special high-performance coating, which is extremely hard and highly wear-resistant, significantly reducing abrasive wear caused by resins and fillers. This results in longer tool life, consistent performance, and reduced tooling costs in high-production environments.
- Compression geometry supports clean top and bottom edges.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.

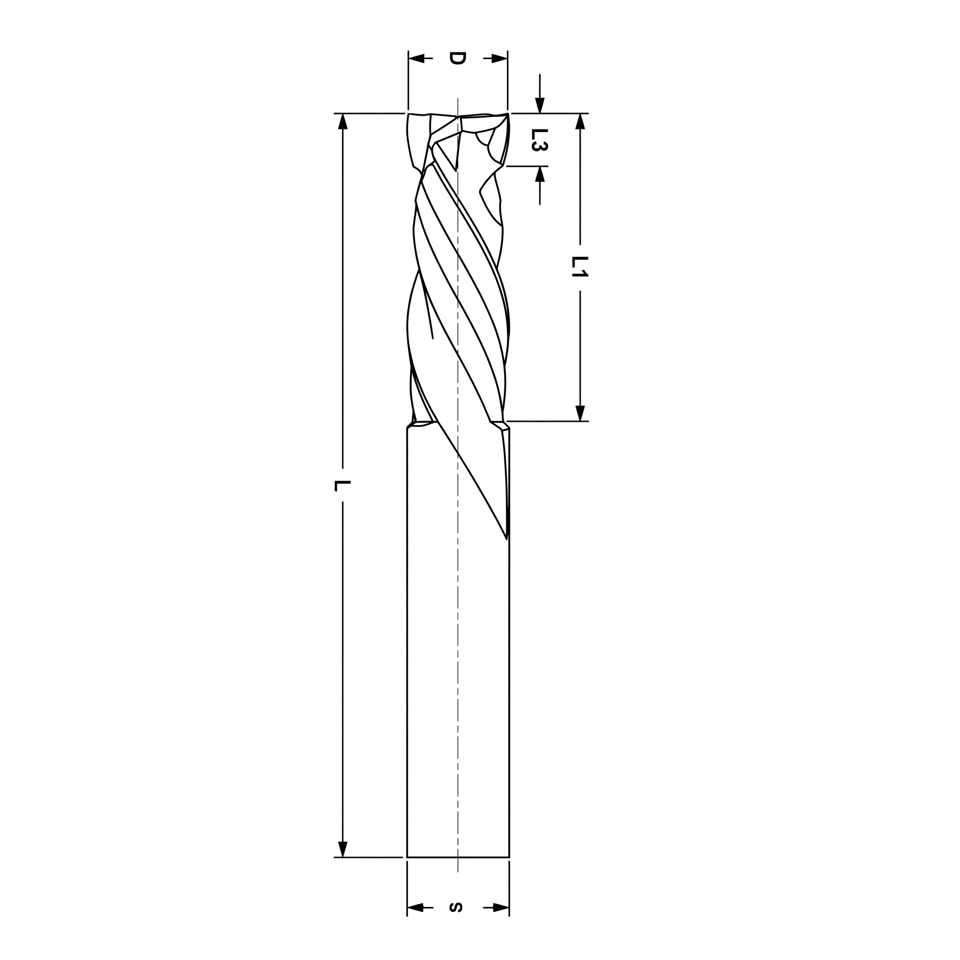

Specifications
- Cutter Diameter: 10 mm.
- Useable Cutting Length: 22 mm.
- Total Length: 70 mm.
- Shank Diameter: 10 mm.
- Flute Count: 2 wing.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- MDF (Medium Density Fibreboard).
- HMR board (Moisture-resistant MDF).
- Particleboard and chipboard.
- Plywood.
- Laminated and melamine-faced panels.
- Veneered board.
Machine Compatibility
- Flatbed CNC routers.
- Nesting CNC machines.
- CNC machining centres with suitable tool holders.
Recommended Application
Recommended for:
- Nesting applications.
- Machining MDF.
Application notes:
- Use stable workholding to minimise vibration.
- Match feed and depth of cut to panel type.
