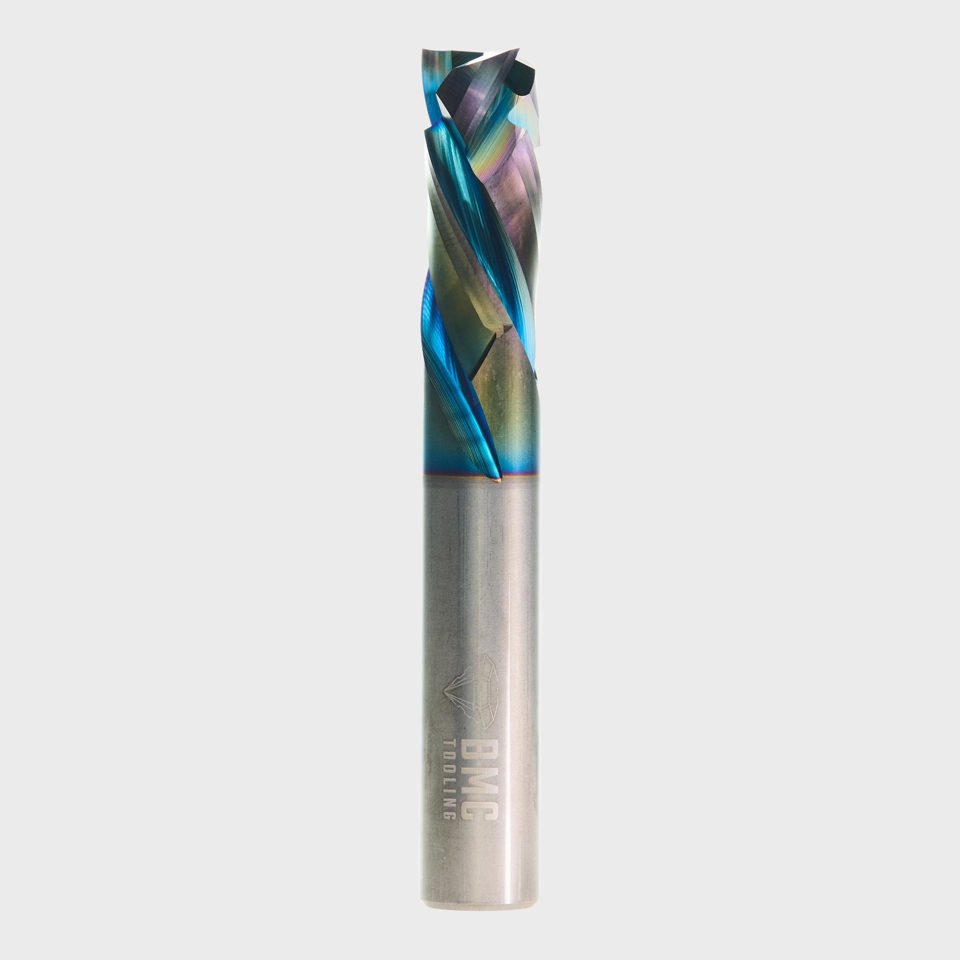

HW Compression Cutter 3 Wings 9.5×22×76 Coated
$110.00
HW Compression Cutter 3 Wings 9.5×22×76 S9.5 Coated.
This tool is designed for nesting applications in HMR. It is suited to production machining where consistency matters.
- Compression geometry supports clean top and bottom edges.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.

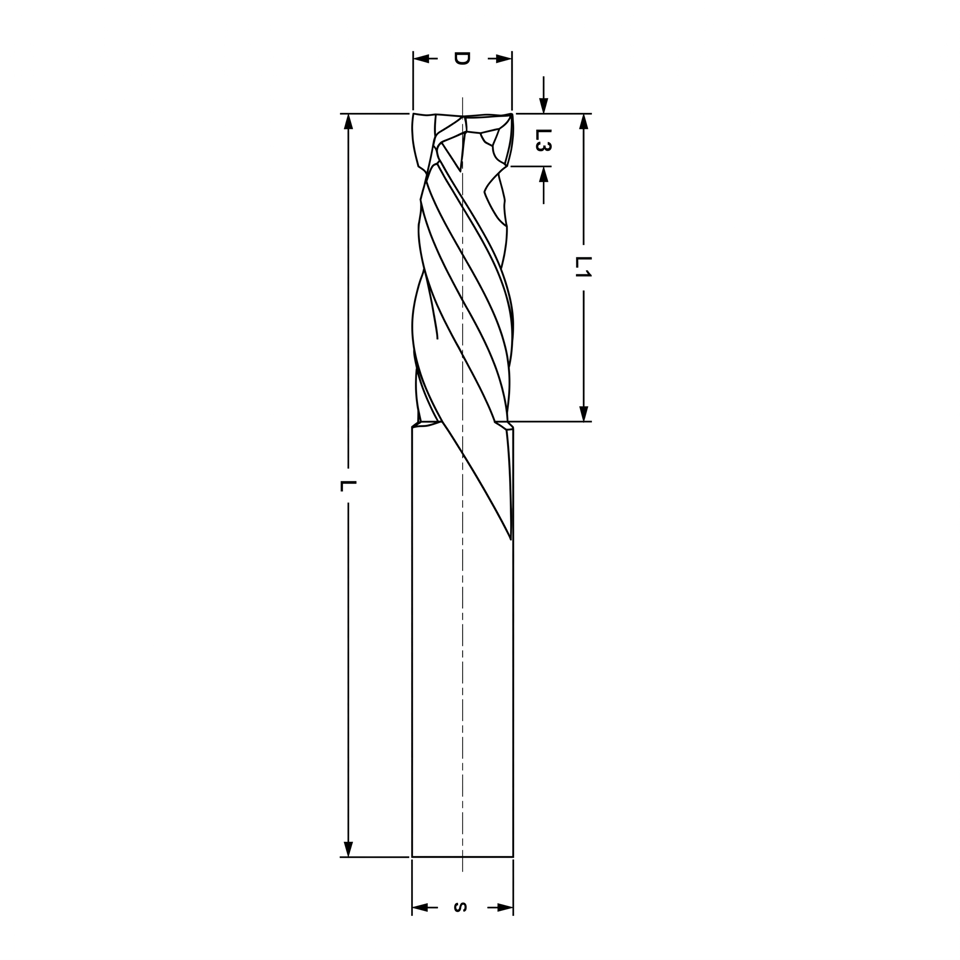

Specifications
- Cutter Diameter (D): 9.5 mm.
- Usable Cutting Length (L1): 22 mm.
- Upcut (L3): 6 mm.
- Total Length (L): 76 mm.
- Shank Diameter (DS): 9.5 mm.
- Flute Count (Z): 3 wings.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- HMR.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Nesting applications.
- Machining HMR.
Application notes:
- Use stable workholding to minimise vibration.
- Match feed and depth of cut to panel type.
