HW Conical Scorer 120×3,1/4,3 B20 Z20
$135.00
The HW Conical Scorer 120×3.1/4.3 B20 Z20 is designed for panel saw scoring applications in MDF, HMR, and plywood.
Used in conjunction with a main panel saw blade, this conical scoring blade pre-cuts the underside of laminated panels to prevent chipping and breakout. The conical design allows fine adjustment of scoring width to suit different material thicknesses and kerf requirements.
- Conical scoring design for adjustable scoring width.
- Prevents underside chipping in laminated panels.
- Designed for MDF, HMR, and plywood processing.
- HW (tungsten carbide tipped) construction for durability.

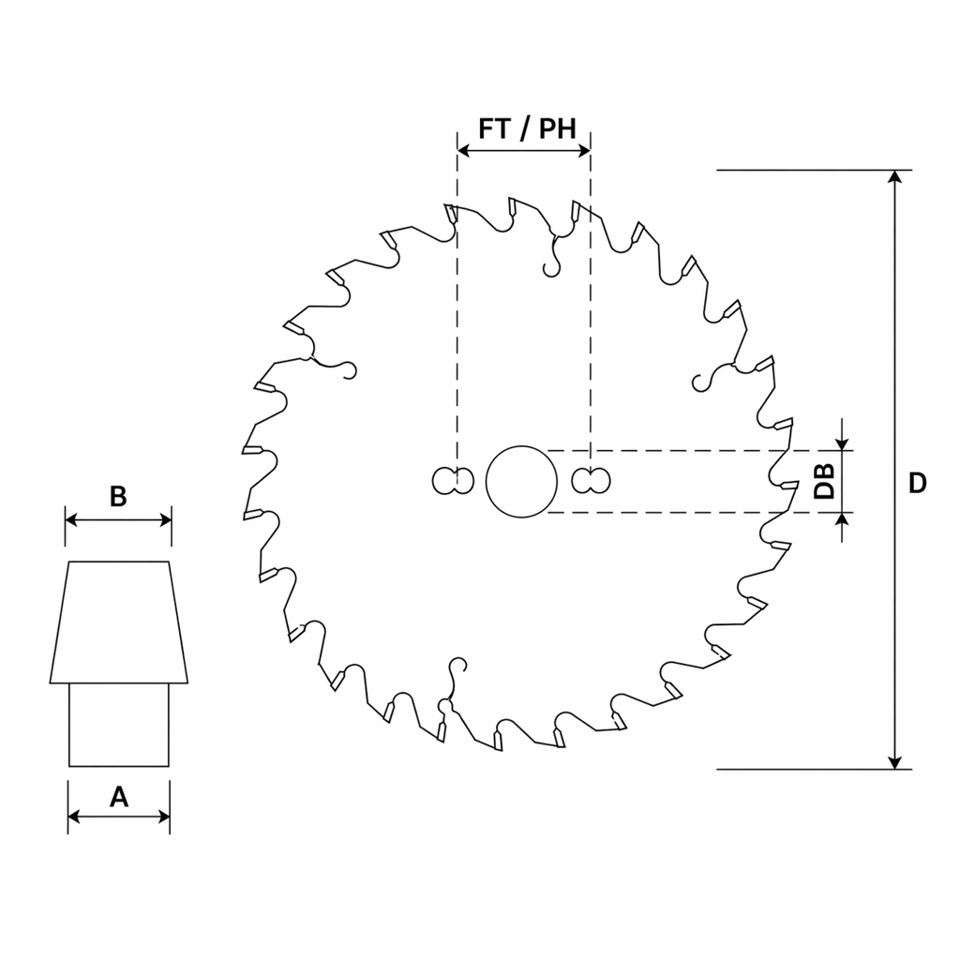

Specifications
- Blade Diameter: 120 mm.
- Kerf Range: 3.1 , 4.3 mm (conical).
- Bore Size: 20 mm (B20).
- Tooth Count: 20 teeth.
- Blade Material: HW (Tungsten Carbide tipped).
- Application Type: Panel saw scoring.
Material Compatibility
- MDF (Medium Density Fibreboard).
- HMR board (Moisture-resistant MDF).
- Plywood.
- Laminated panels.
- Veneer and delicate coated board, where applicable.
Machine Compatibility
- Panel saws with scoring units.
- Beam saws equipped with scoring assemblies.
- Machines with compatible scoring spindle and bore size.
Recommended Application
Recommended for:
- Scoring laminated MDF, HMR, and plywood prior to main blade cutting.
- Applications requiring clean underside edges.
Application notes:
- Adjust conical width to match the kerf of the main blade.
- Ensure correct alignment between scoring and main blade for optimal finish.
