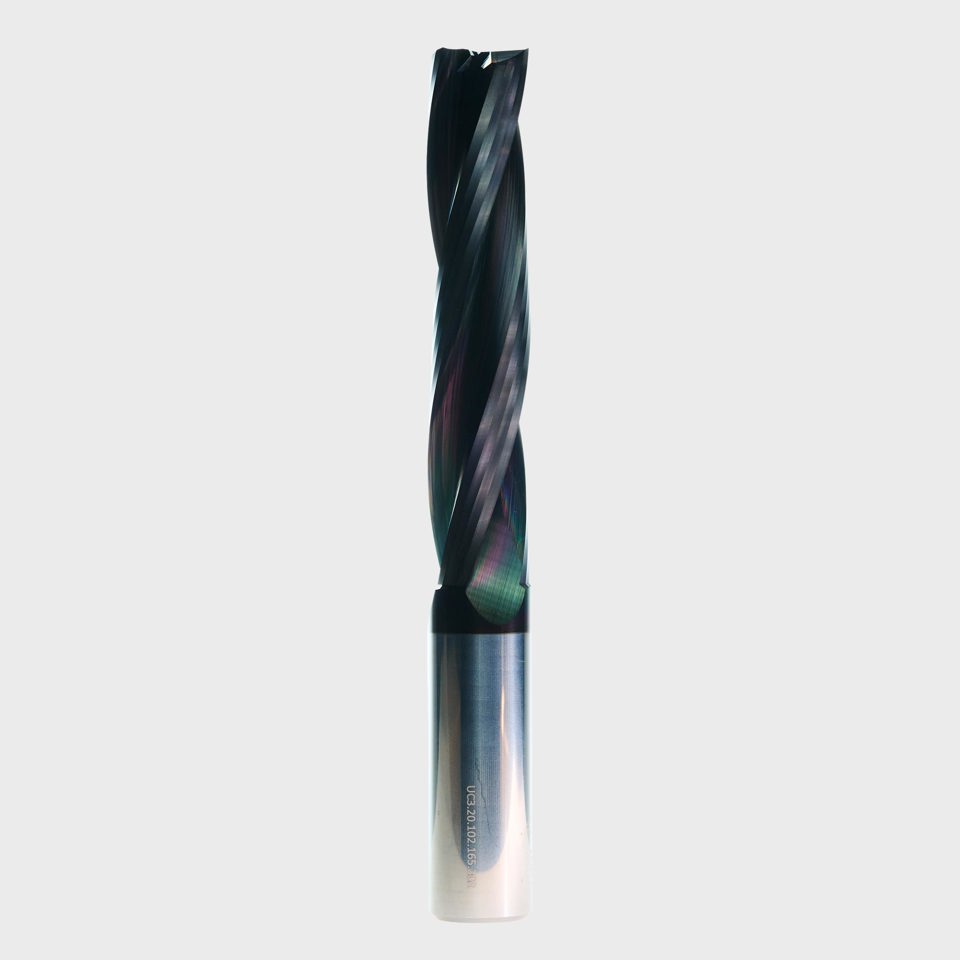

HW Upcut Finishing 3 Wings 20x102x150 S20 Coated
$588.00
HW Upcut Finishing 3 Wings 20x102x150 S20 Coated.
This tool is designed for grooving, contouring applications in Solid Timber. It is suited to production machining where consistency matters.
- Upcut geometry supports chip evacuation.
- Finishing geometry supports improved surface finish.
- Coated for improved wear resistance.
- HW cutting material supports durability.

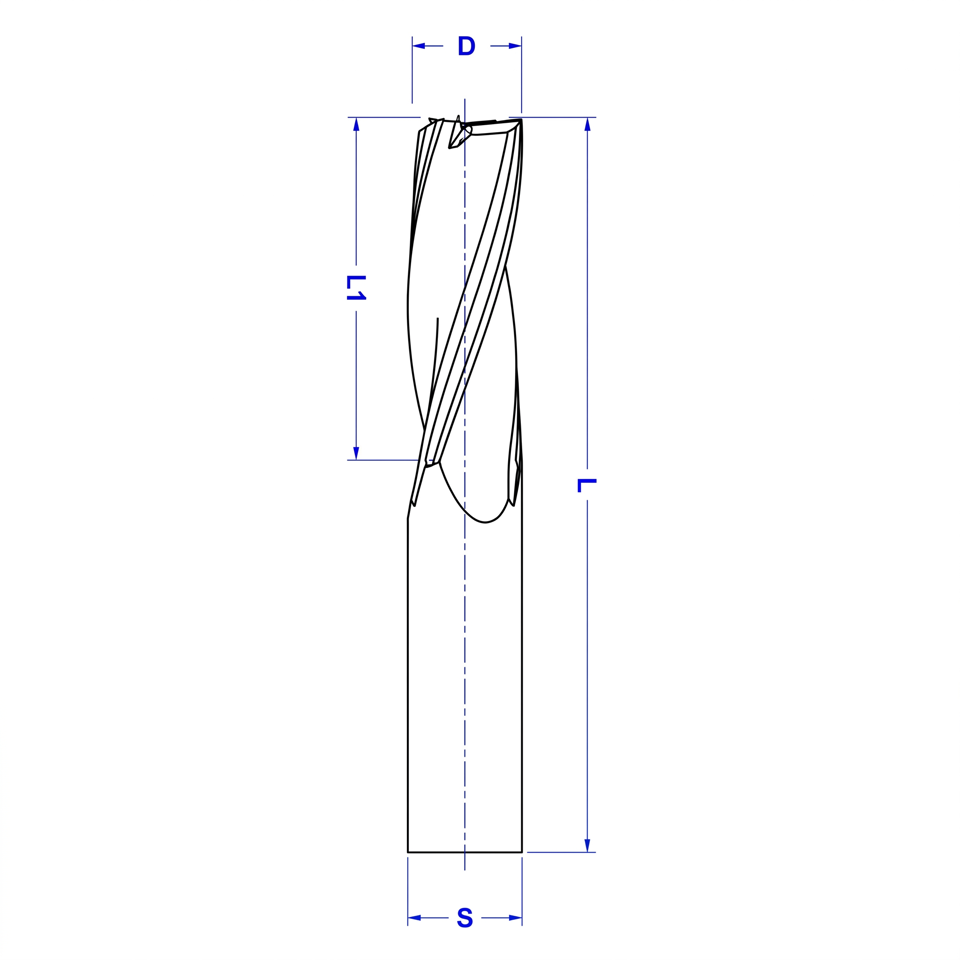

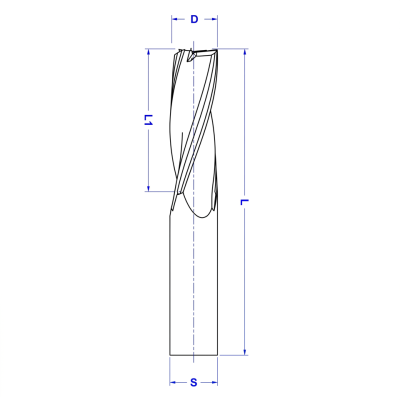

Specifications
- Cutter Diameter (D): 20 mm.
- Usable Cutting Length (L1): 102 mm.
- Total Length (L): 150 mm.
- Shank Diameter (DS): 20 mm.
- Flute Count (Z): 3 wings.
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- Solid Timber.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Grooving, Contouring applications.
- Machining Solid Timber.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
