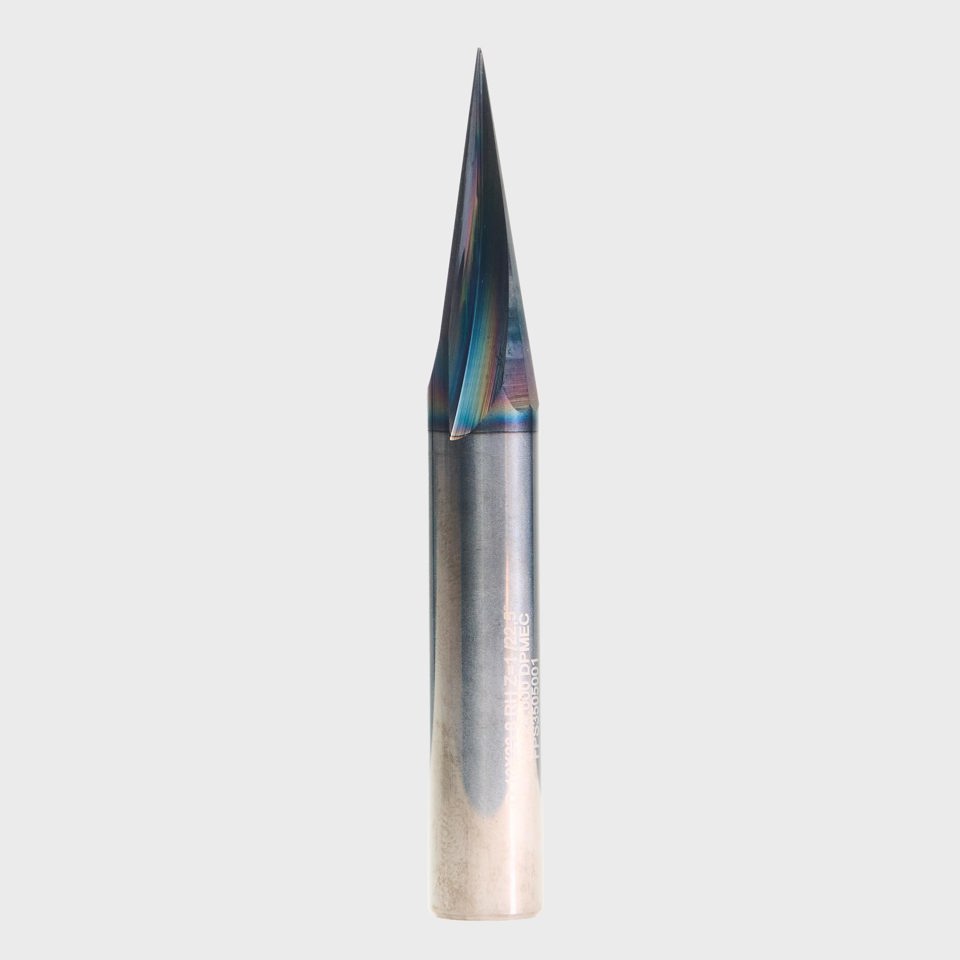

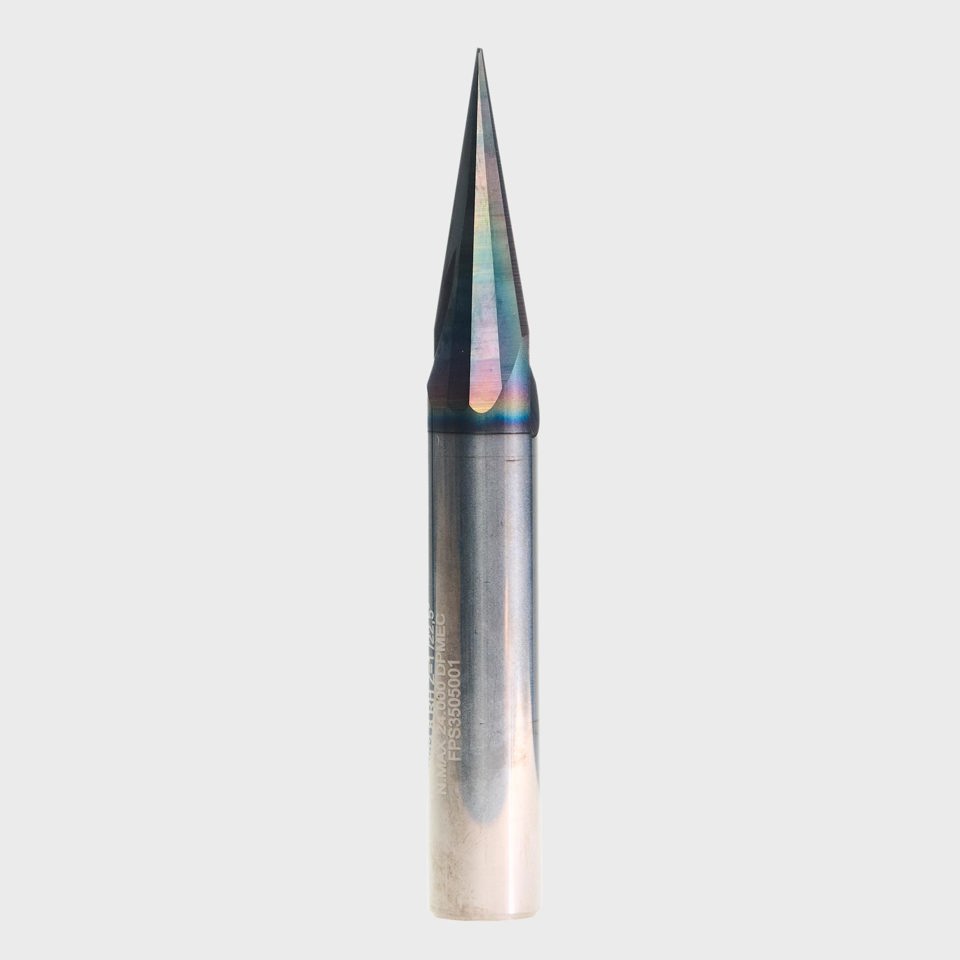

HW V Cutter 22.5° 10×23.8×75 S10 Coated
$121.00
HW V Cutter 22.5° 10×23.8×75 S10 Coated.
This tool is designed for grooving, decorative panels applications in MDF, HMR, Plywood, Veneer and Delicate Coating. It is suited to production machining where consistency matters.
- Coated for improved wear resistance.
- HW cutting material supports durability.
- Rotation: Right-hand.

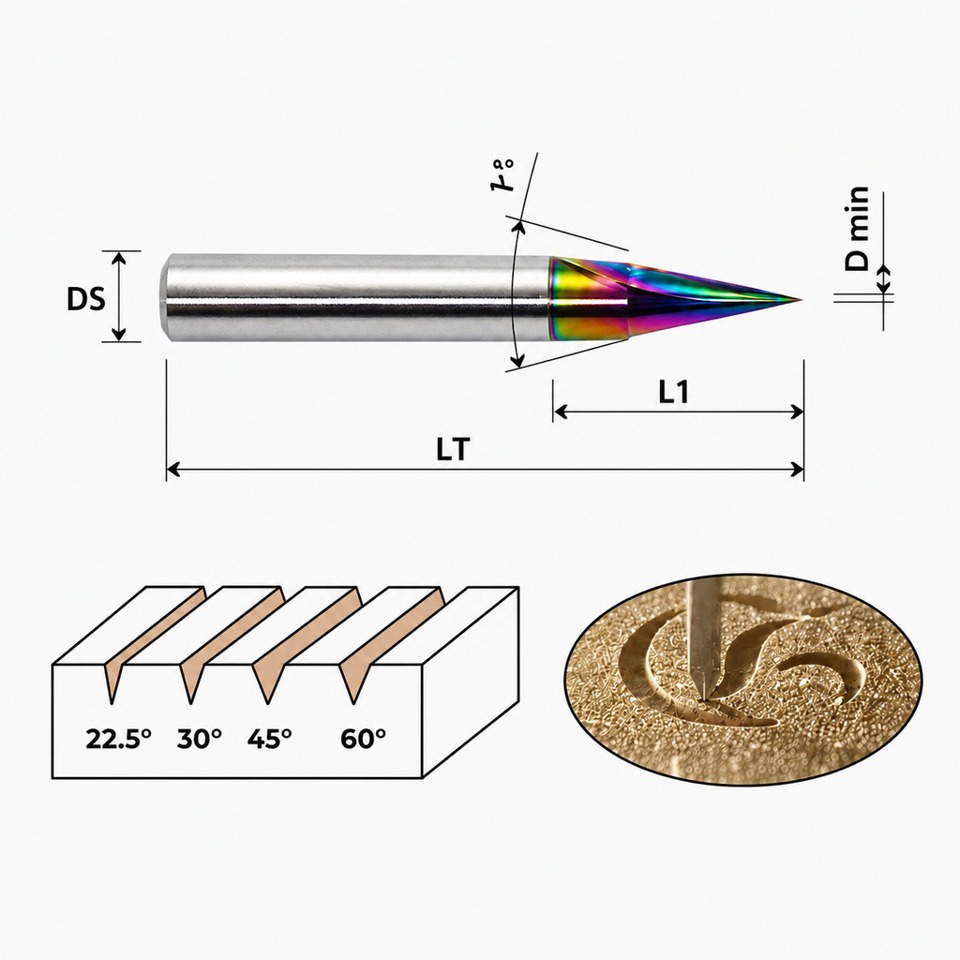

Specifications
- Cutter Diameter (D): 10 mm.
- Usable Cutting Length (L1): 23.8 mm.
- Total Length (L): 75 mm.
- Shank Diameter (DS): 10 mm.
- Cutting Angle (γ°): 22.5°
- Coating: Yes.
- Cutting Material: HW (Tungsten Carbide).
- Rotation: Right-hand.
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
Machine Compatibility
- Flatbed CNC routers.
- CNC machining centres.
Recommended Application
Recommended for:
- Grooving, Decorative Panels applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
