Pcd Pocketing Cutter Z7 40x12x67 S20
$620.00
Pcd Pocketing Cutter Z7 40x12x67 S20.
This tool is designed for grooving, pocketing applications in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber, Composite Materials, HPL, Compact Laminates, Corian, Trespa. It is suited to production machining where consistency matters.
- PCD cutting edges support extended tool life.
- Rotation: Right-hand.

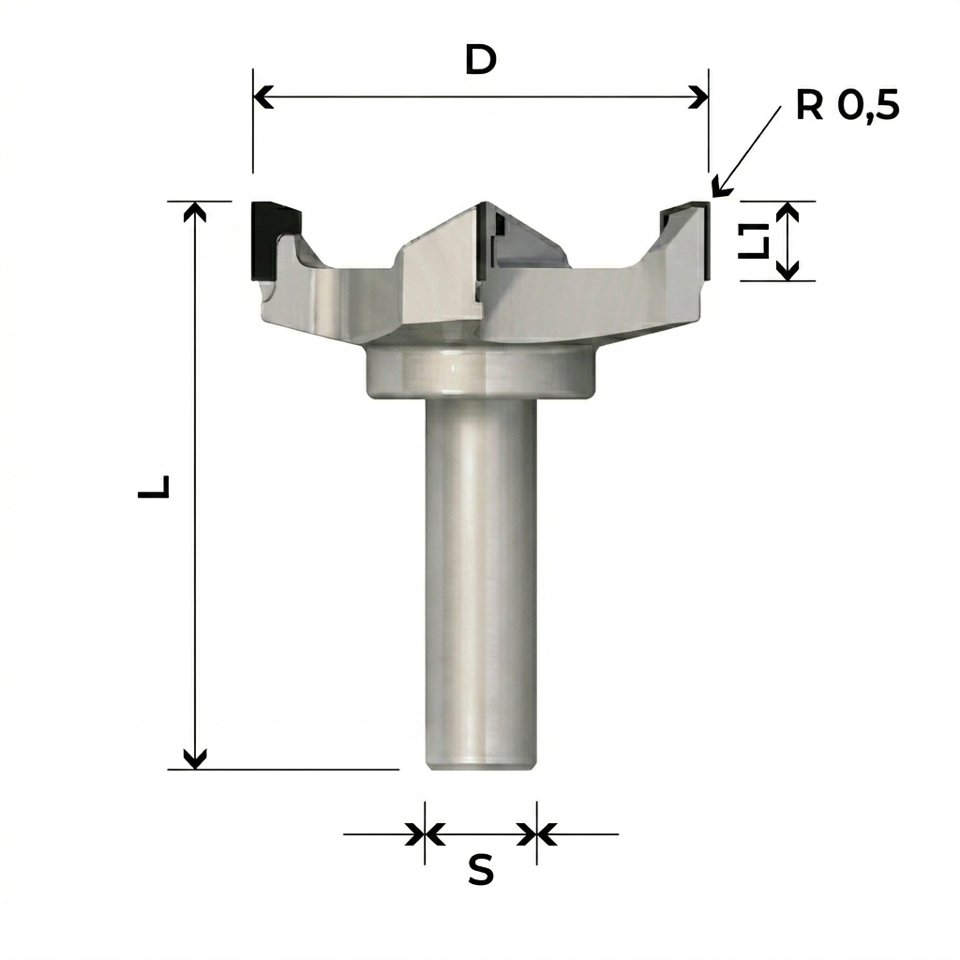

Specifications
- Cutter Diameter: 40 mm.
- Useable Cutting Length: 12 mm.
- Total Length: 67 mm.
- Shank Diameter: 20 mm.
- Flute Count: 7.
- Cutting Material: PCD (Polycrystalline Diamond).
- Rotation: Right-hand.
Material Compatibility
- HPL (High Pressure Laminate).
- Compact laminate panels.
- Composite materials.
- Solid surface materials such as Corian and similar products.
- Fibre cement and abrasive panel products.
- MDF and laminated MDF.
Machine Compatibility
- Flatbed CNC routers.
- Nesting CNC machines.
- CNC machining centres used for abrasive panel processing.
Recommended Application
Recommended for:
- Grooving, Pocketing applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
