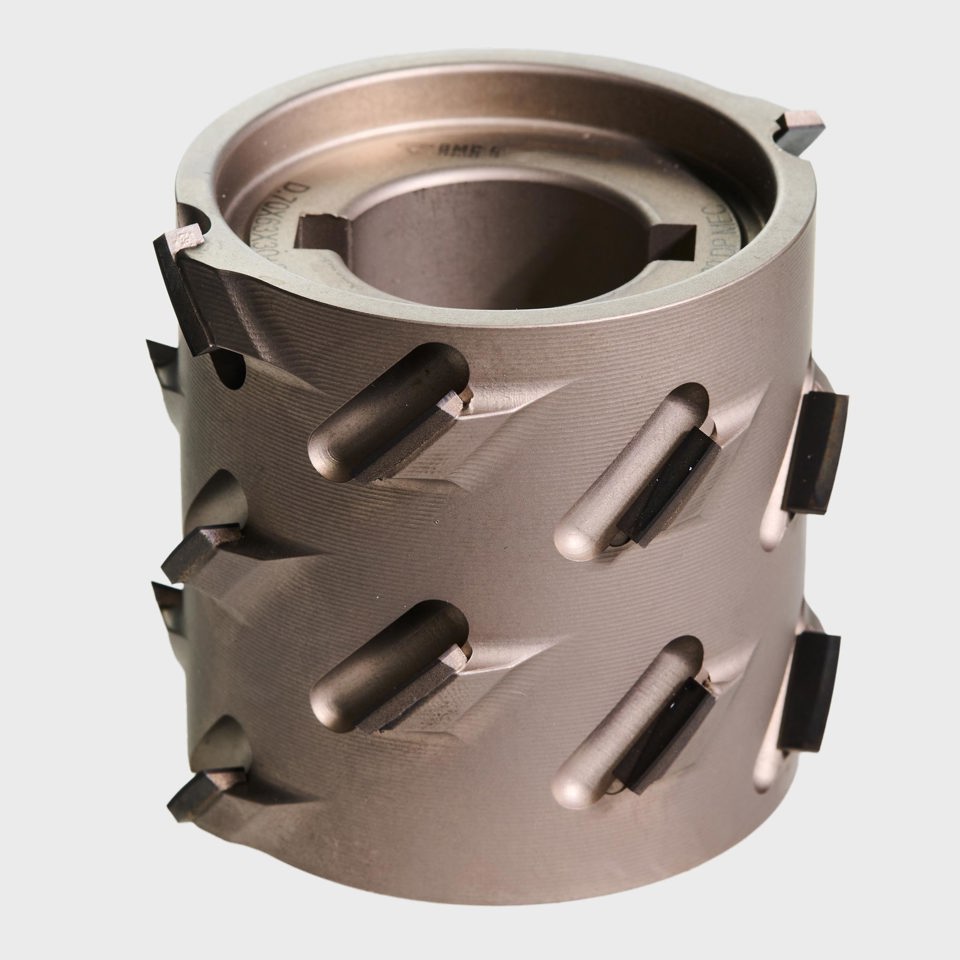

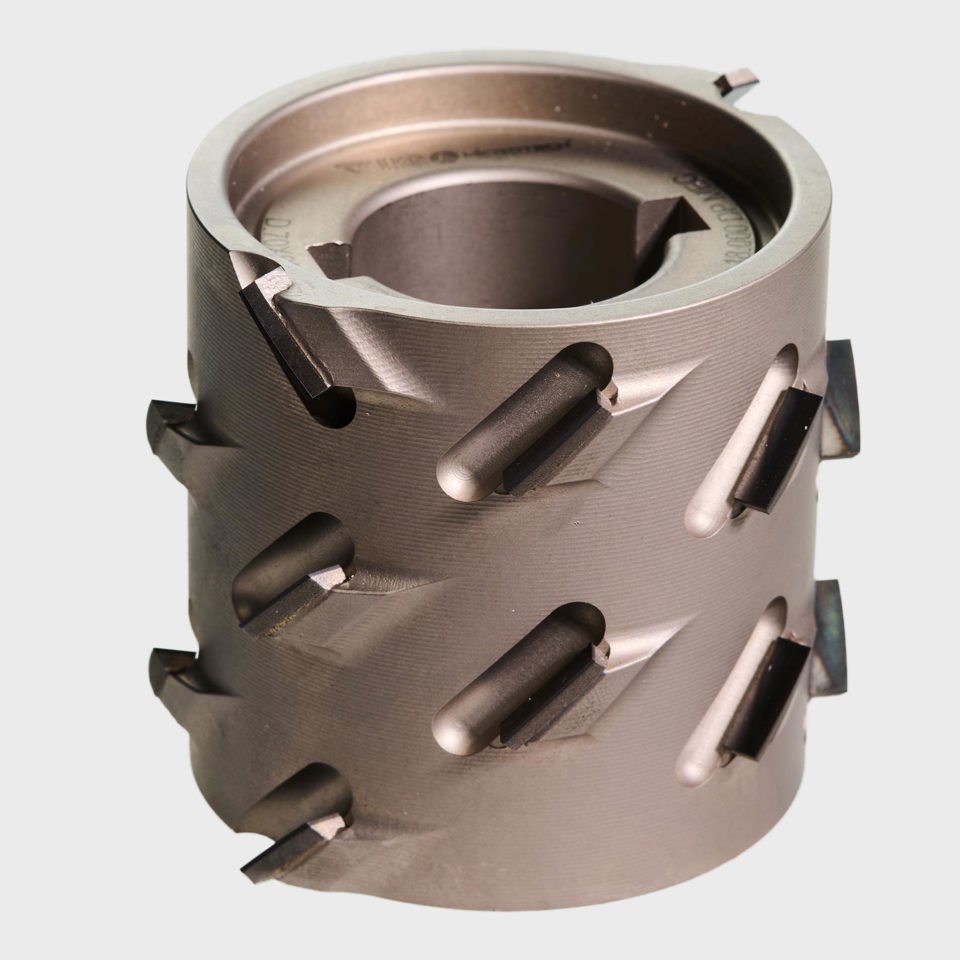

PCD Premiller Braised Holzer 70x63x30 45° Z2+2 RH
$1,050.00
The PCD Premiller with Brazed Tips Z3+3 | 45° Axial is a top-performing premilling solution engineered for very high-speed edgebander production, delivering a superior finish and exceptional stability.
Equipped with PCD brazed cutting tips and an advanced 45° axial geometry, this premiller ensures smooth, aggressive material removal while maintaining outstanding edge quality, even at maximum feed speeds.
The Z3+3 configuration provides optimal cutting balance, reduced vibration, and consistent results in demanding industrial environments.
Specifically designed for Holzer edgebanders, this premiller is also highly effective for premilling HPL, offering extreme wear resistance, long tool life, and reduced downtime.
- PCD cutting edges support extended tool life.
Specifications
- Tool Type: Premiller Braised.
- Compatible Machine: Holzer edgebander.

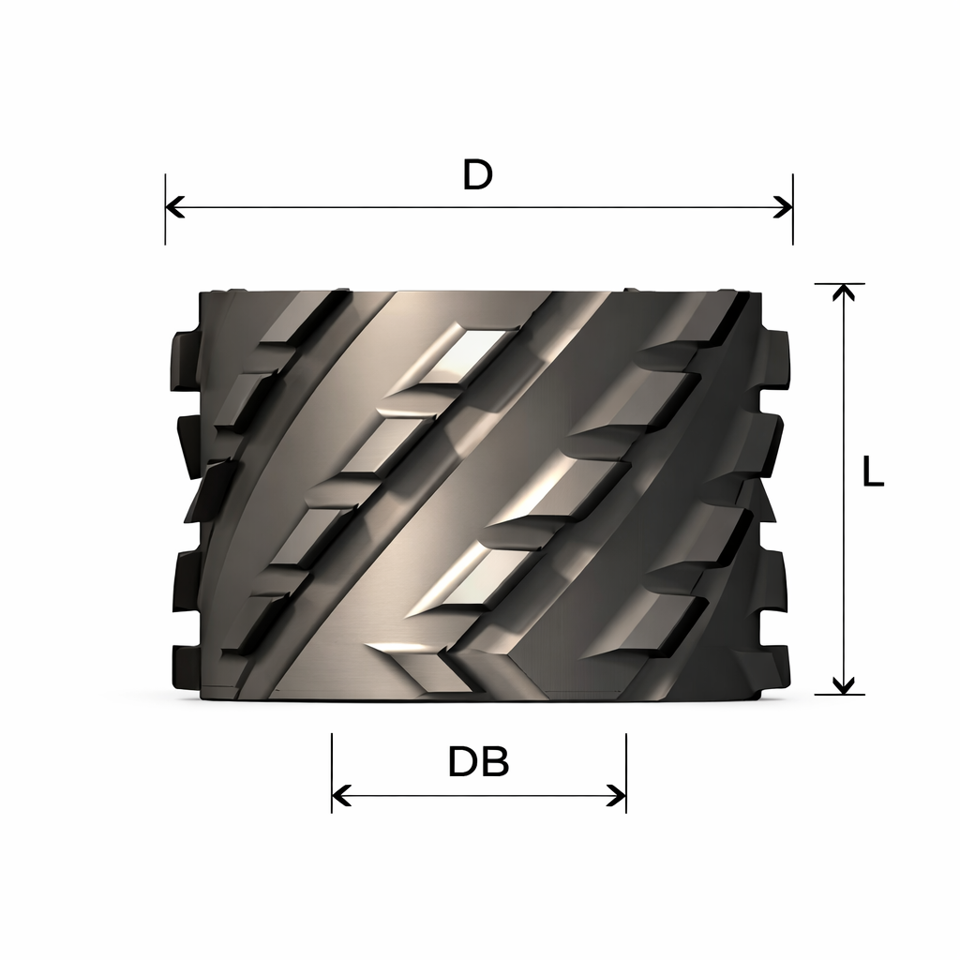

- Body Diameter (D): 70 mm.
- Useful Cutting Length (LU): 63 mm.
- Bore Diameter (DB): 30 mm.
- Tooth Configuration (Z): Z2+2.
- Cutting Angle (γ°): 45°.
- Rotation: Right-hand.
- Cutting Material: PCD (Polycrystalline Diamond).
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- Edgebanders.
- Holzher compatible machines.
Recommended Application
Recommended for:
- Edgebanding applications.
- Machining MDF, HMR, Plywood and more.
