PCD Trimmer Holzer 56×11 B20+2 Z2 R1.5 LH
$542.00

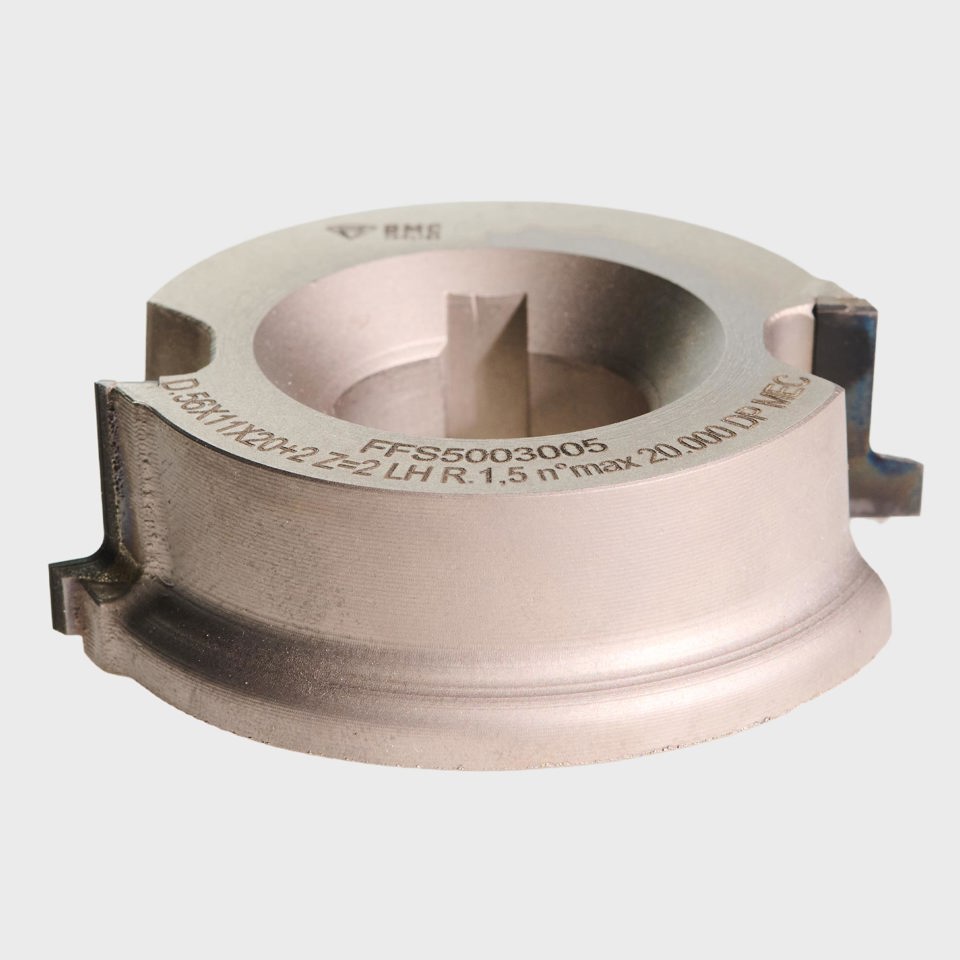

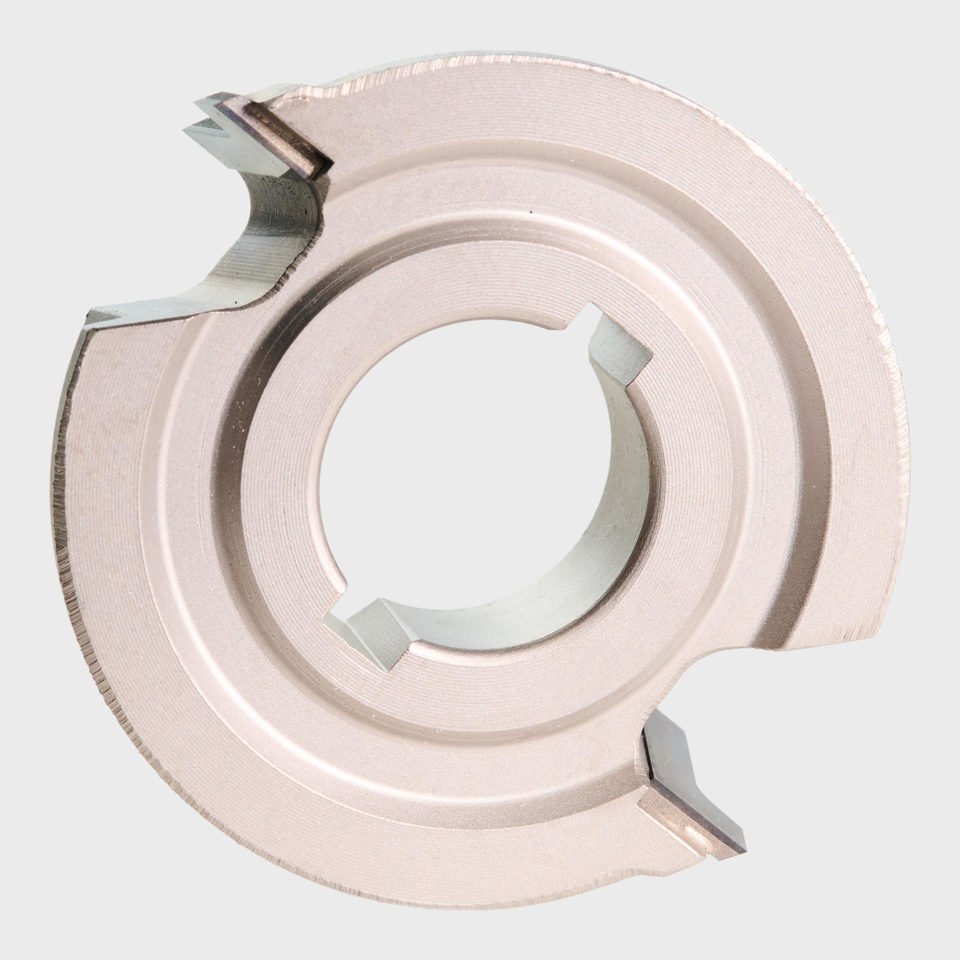

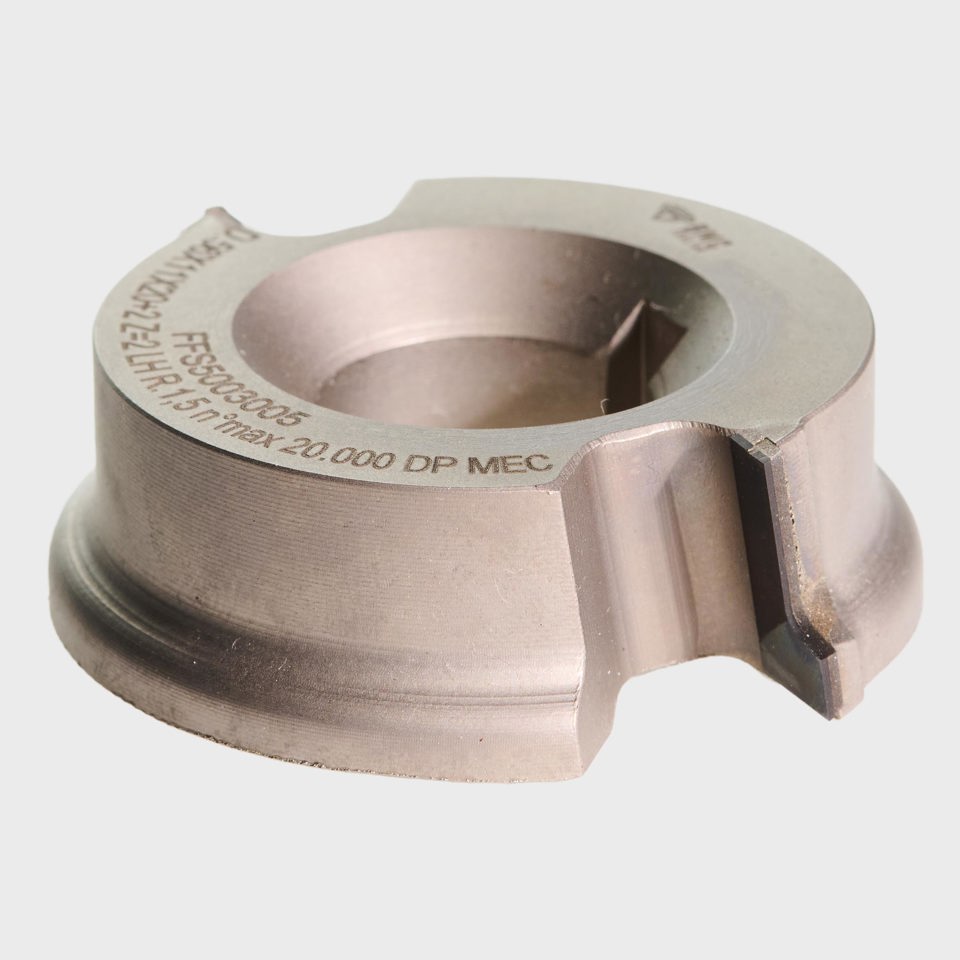

PCD Trimmer Holzer 56×11 B20+2 Z2 R1.5 LH.
This tool is designed for edgebanding applications in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber. It is suited to production machining where consistency matters.
- PCD cutting edges support extended tool life.

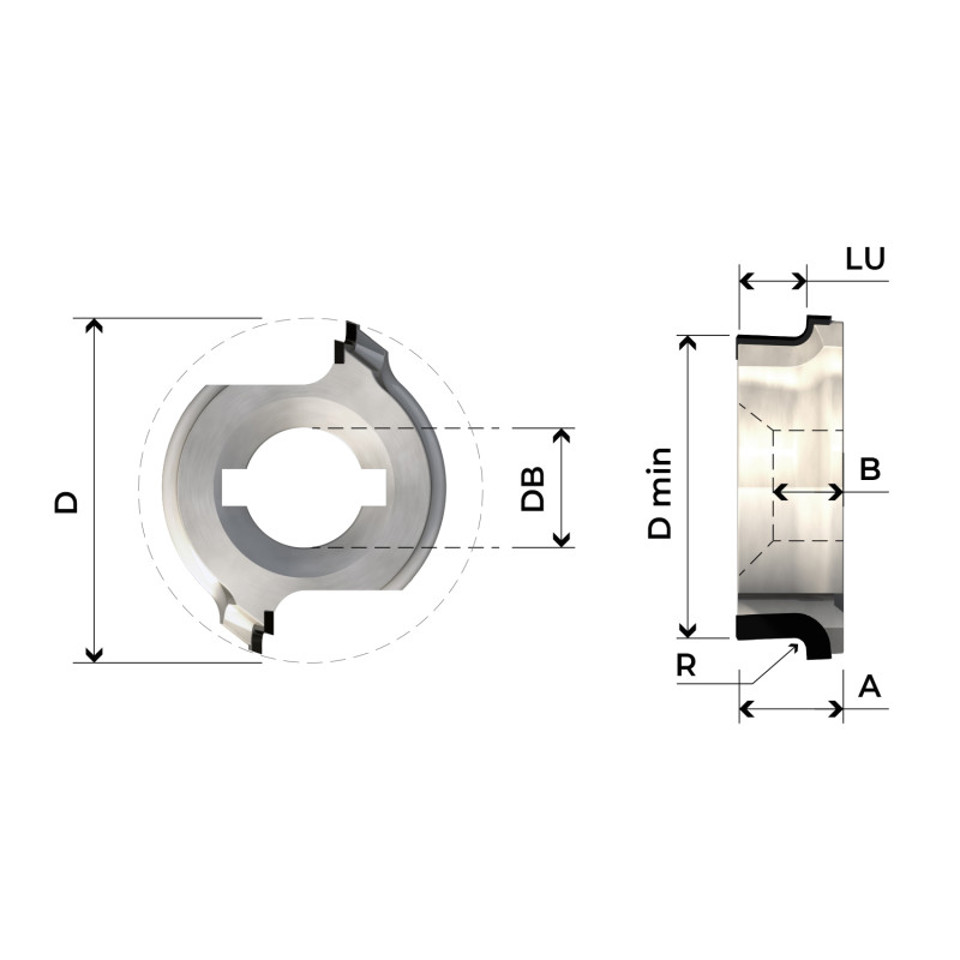

Specifications
- Tool Type: Trimmer.
- Compatible Machine: Holzer edgebander.
- Body Diameter: 56 mm.
- Body Height: 11 mm.
- Bore Configuration: B20+2.
- Tooth Configuration: Z2.
- Edge Radius: R1.5.
- Rotation: Left-hand.
- Cutting Material: PCD (Polycrystalline Diamond).
Material Compatibility
- MDF (Medium Density Fibreboard).
- HMR board (Moisture-resistant MDF).
- Particleboard and chipboard.
- Plywood.
- Laminated and edge-banded panels.
Machine Compatibility
- Edgebanders with trimming units.
- Biesse, SCM, Stefani, Holzer, KDT, Excitech and similar systems, where compatible.
- Machines using the correct radius, rotation, and mounting configuration.
Recommended Application
Recommended for:
- Edgebanding applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
