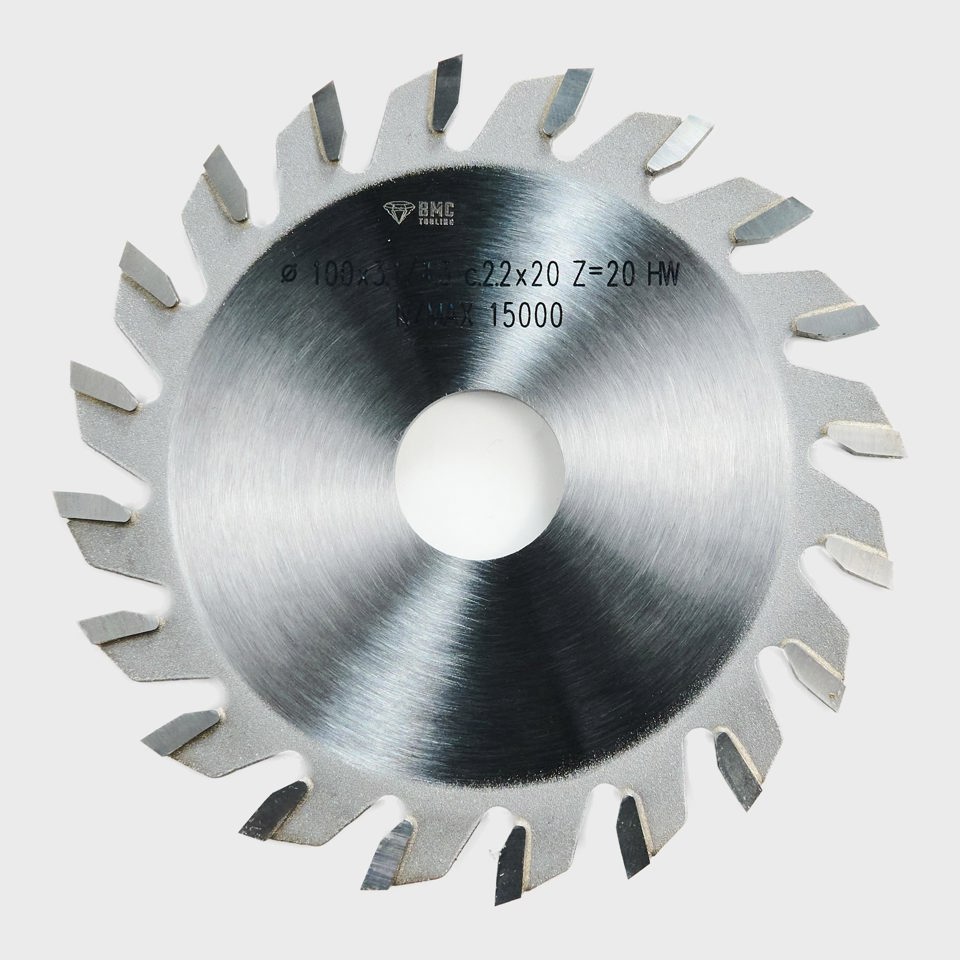

HW Conical Scorer 100×3.1/4.3 B20 Z20
$135.00
The HW Conical Scorer 100×3.1/4.3 B20 Z20 is designed for panel saw scoring applications in MDF, HMR, and plywood.
Featuring a conical tooth geometry, this scorer prevents tear-out and splintering on the top layer of panels, making it ideal for sliding table saws and horizontal panel saws. The high-quality HW construction provides long-lasting performance, durability, and resistance to wear, even in demanding production environments.
- Prevents underside chipping in laminated materials.
- Designed for MDF, HMR, and plywood processing.
- HW (tungsten carbide tipped) construction for durability.

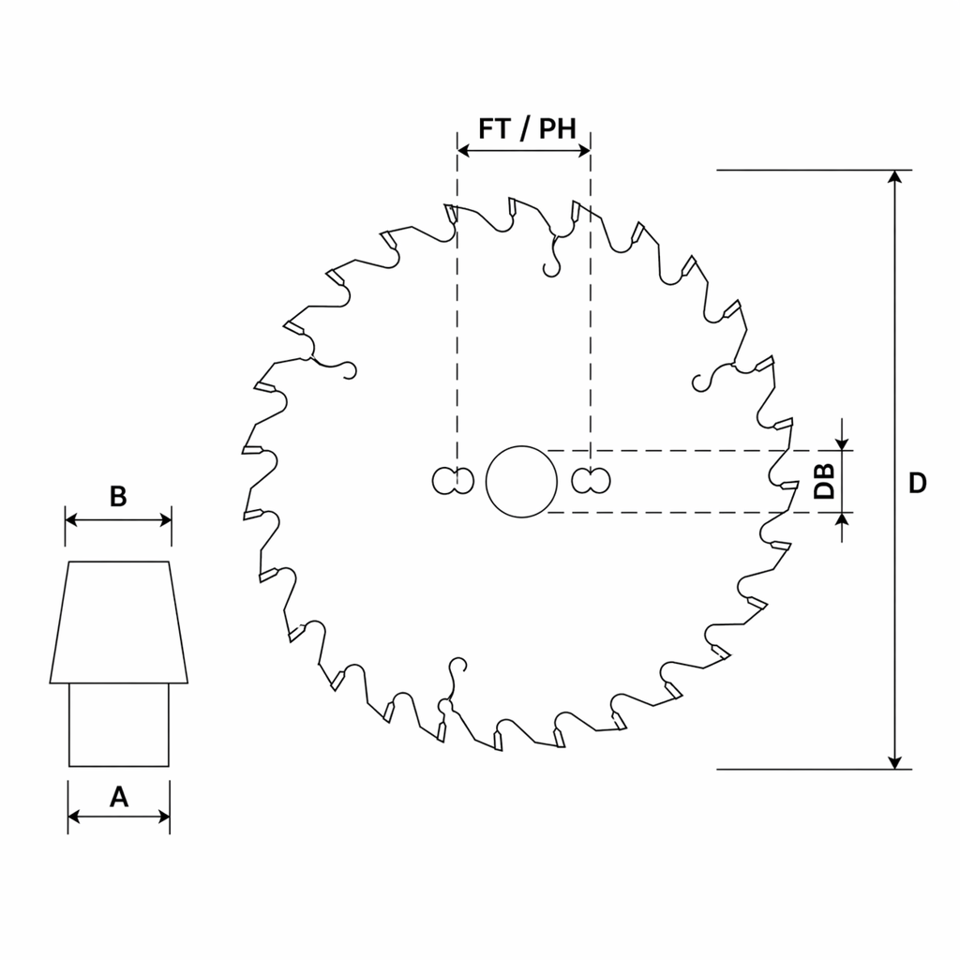

Specifications
- Blade Diameter (D): 100 mm.
- Bore Diameter (DB): 20 mm.
- Body Width (A): 2.2 mm.
- Kerf Range (B): 3.1/4.3 mm
- Tooth Count (Z): 20 teeth.
- Cutting Angle (γ°): 10°
- Blade Material: HW (Tungsten Carbide tipped).
- Application Type: Panel saw scoring.
Material Compatibility
- MDF.
- HMR board.
- Plywood.
- Laminated panels.
Machine Compatibility
- Panel saws with scoring units.
- Beam saws equipped with scoring assemblies.
Recommended Application
Recommended for:
- Scoring laminated MDF, HMR, and plywood prior to main blade cutting.
- Applications requiring clean underside edges.
Application notes:
- Ensure correct alignment between scoring and main blade for optimal finish.
