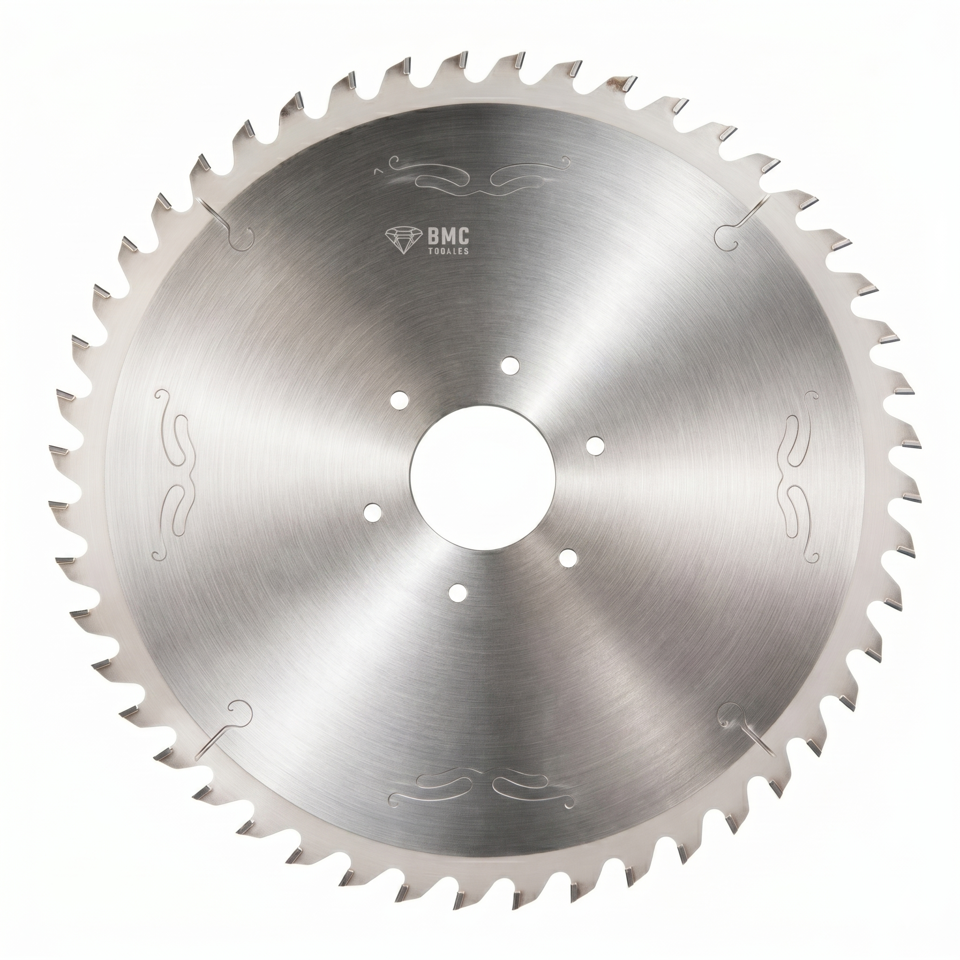

PCD Saw Blade CNC Triple Chip 200×3,2 F50+6 Z48
$1,190.00
The PCD Saw Blade CNC Triple Chip 200×3.2 F50+6 Z48 is designed for precision sizing on CNC machines across a range of panel and timber materials.
Featuring PCD (Polycrystalline Diamond) cutting edges and a triple chip tooth configuration, this blade delivers exceptional wear resistance and clean, accurate cuts. The CNC-specific mounting configuration ensures secure fixing and stable cutting performance in high-speed machining environments.
- PCD cutting edges for extended tool life in abrasive materials.
- Triple chip geometry for clean, stable cutting.
- Designed for CNC machining centres.
- Suitable for both panel and solid timber sizing applications.

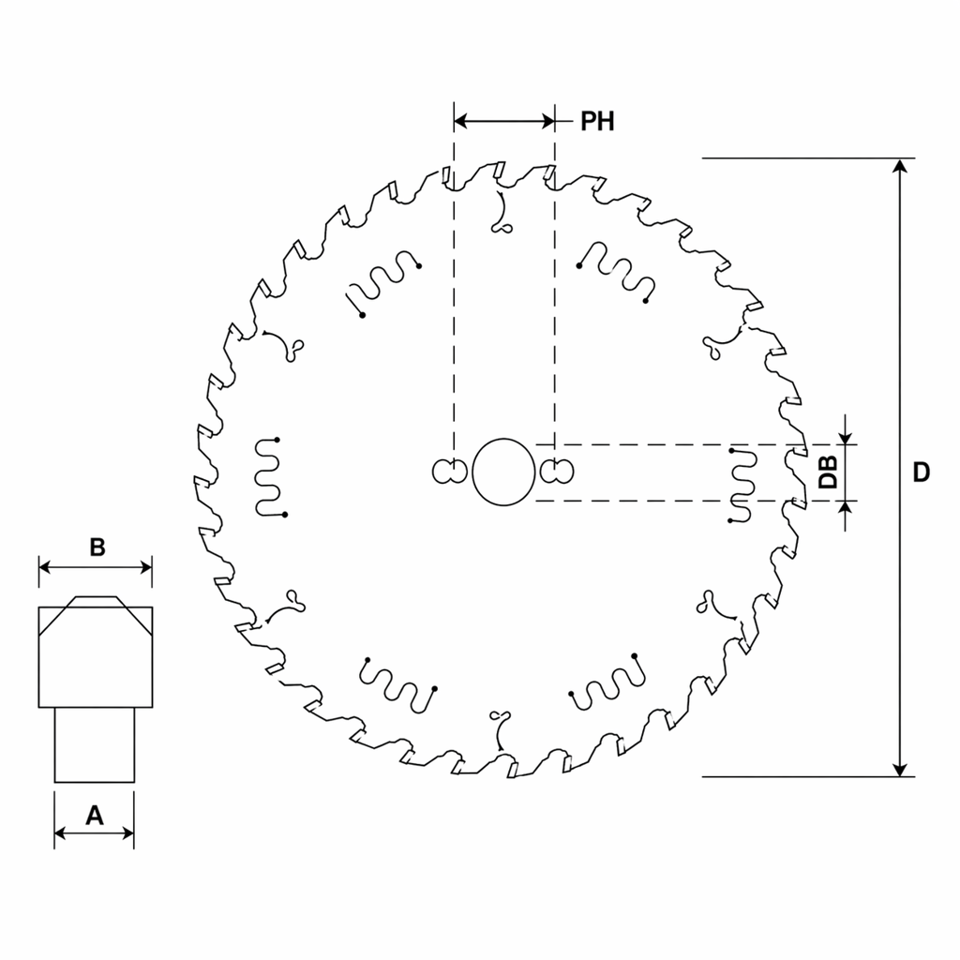

Specifications
- Blade Diameter (D): 200 mm.
- Bore Diameter (DB): 50 mm.
- Body Width (A): 2.2 mm.
- Kerf Width (B): 3.2 mm.
- Pin Holes (PH): 6
- Tooth Count (Z): 48 teeth (Triple Chip).
- Cutting Material: PCD (Polycrystalline Diamond).
- Application Type: CNC sizing.
Material Compatibility
- MDF.
- HMR board.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- CNC machining centres.
- CNC panel processing machines with F50 + 6 mounting configuration.
Recommended Application
Recommended for:
- Precision CNC sizing of panel and timber materials.
- Applications requiring long tool life in abrasive boards.
Application notes:
- Ensure correct flange and pin configuration compatibility before installation.
- PCD edges provide significantly longer life compared to standard carbide in abrasive materials.
