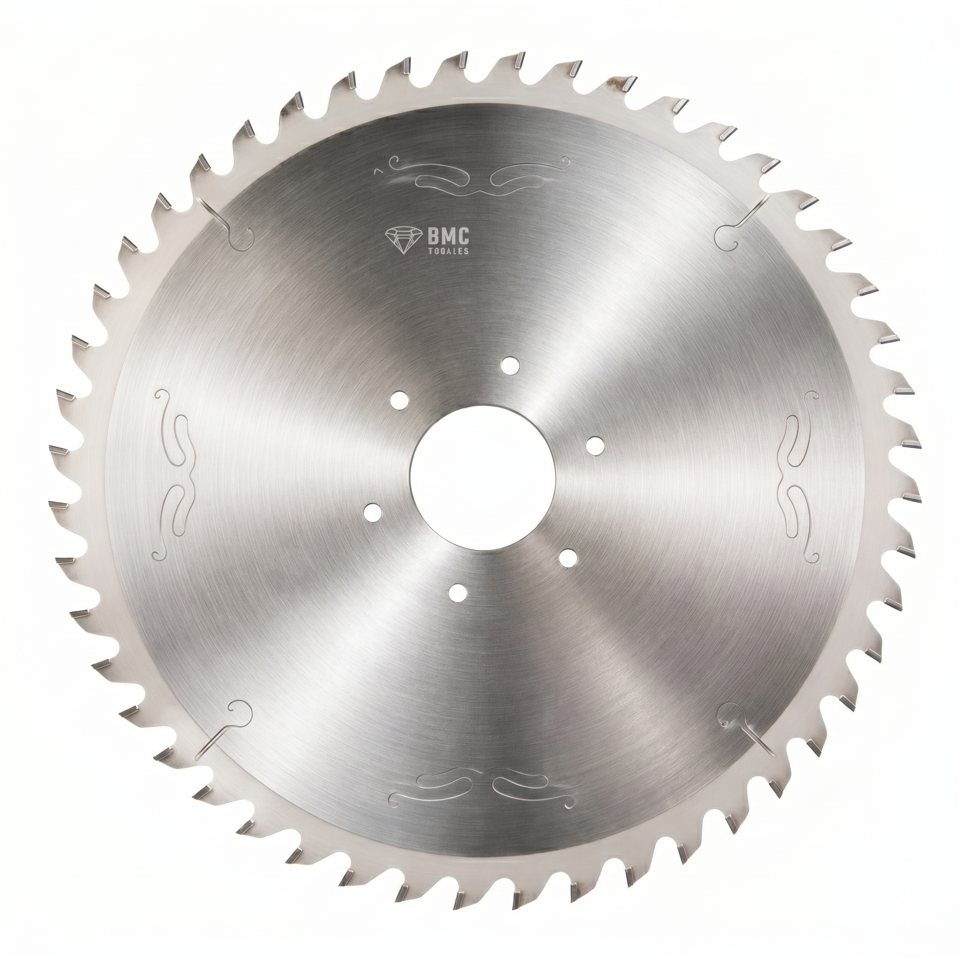

PCD Saw Blade CNC Triple Chip 350x4x30+8 Z48
$1,530.00
The PCD Saw Blade CNC Triple Chip 350x4x30+8 Z48 is designed for high-precision CNC sizing across panel and timber materials.
Featuring PCD (Polycrystalline Diamond) cutting edges and a triple chip tooth configuration, this blade delivers exceptional durability and clean cutting performance. The CNC mounting configuration ensures stable fixing and accurate cutting in demanding production environments.
- PCD cutting edges for maximum wear resistance in abrasive materials.
- Triple chip geometry for smooth, accurate cutting.
- Designed for CNC machining centres.
- Suitable for panel materials and solid timber applications.

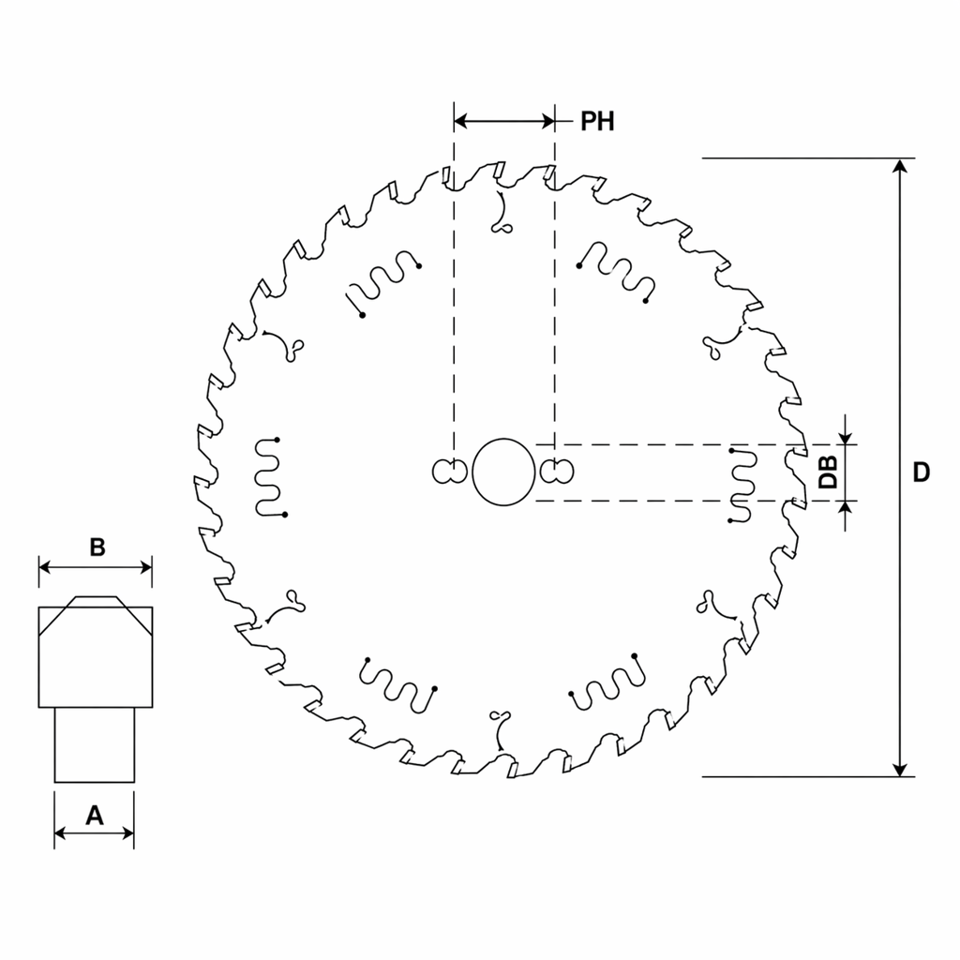

Specifications
- Blade Diameter (D): 350 mm.
- Bore Diameter (DB): 30 mm.
- Body Width (A): 3 mm.
- Kerf Width (B): 4 mm.
- Pin Holes (PH): 8
- Tooth Count (Z): 48 teeth (Triple Chip).
- Cutting Material: PCD (Polycrystalline Diamond).
- Application Type: CNC sizing.
Material Compatibility
- MDF.
- HMR board.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- CNC machining centres.
- CNC panel processing machines with 30 mm bore and drive pin configuration.
Recommended Application
Recommended for:
- Precision CNC sizing of panels and solid timber.
- Applications requiring extended tool life in abrasive materials.
Application notes:
- Ensure compatibility of bore and drive pin configuration before installation.
- PCD cutting edges provide significantly longer life than standard carbide in high-production environments.
