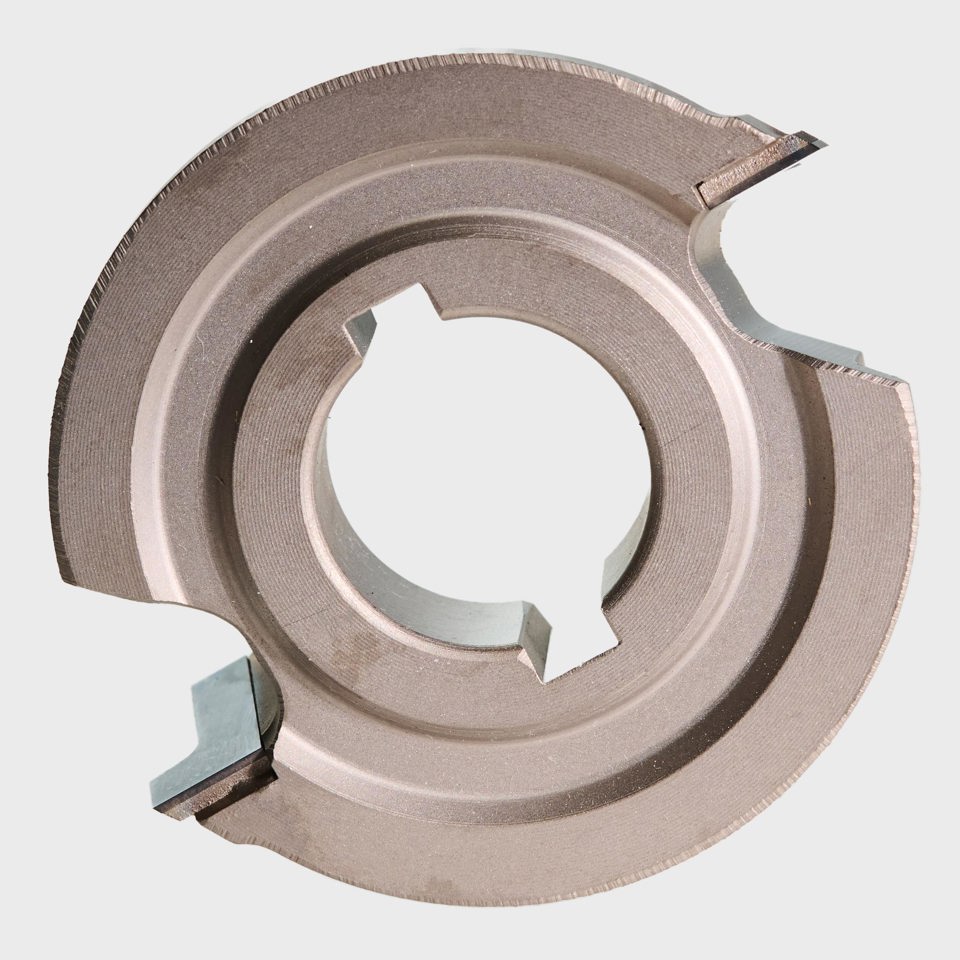

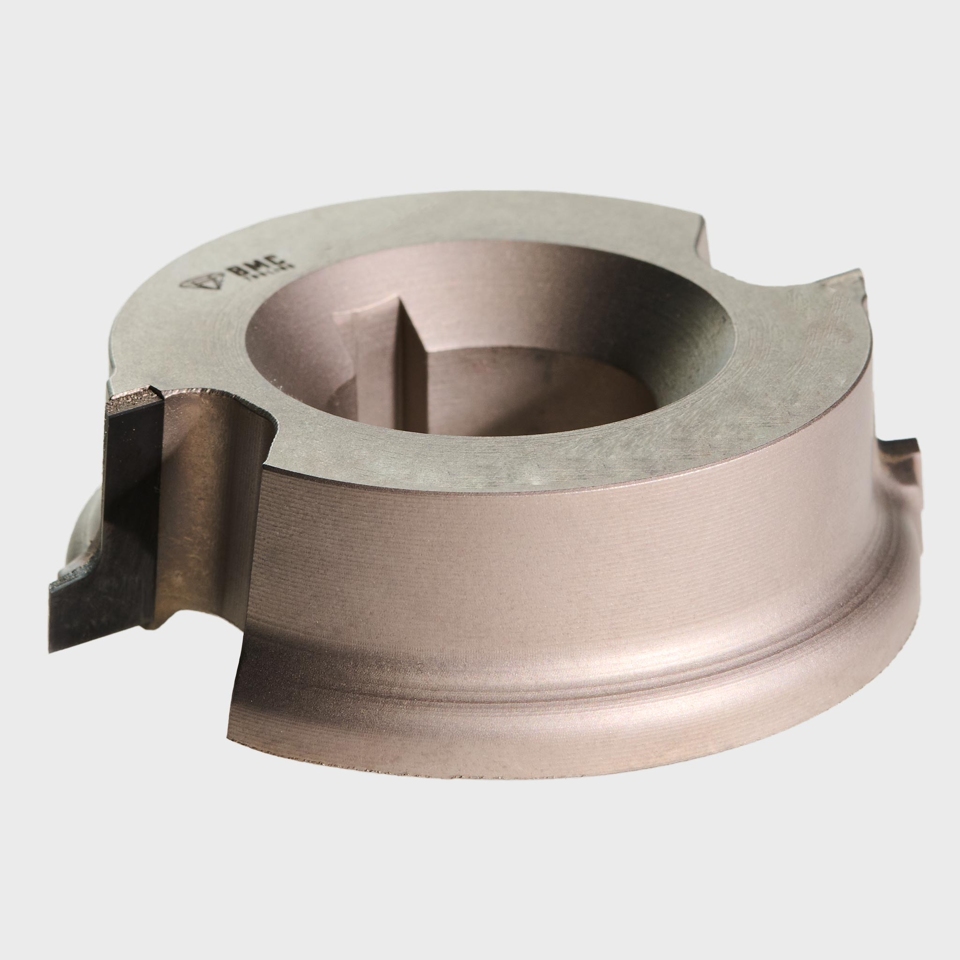

PCD Trimmer Holzer 57.25×16 B20+2 Z2 RH
$542.00
PCD Trimmer Holzer 57.25×16 B20+2 Z2 RH.
This tool is designed for edgebanding applications in MDF, HMR, Plywood, Veneer and Delicate Coating, Solid Timber. It is suited to production machining where consistency matters.
- PCD cutting edges support extended tool life.
Specifications
- Tool Type: Trimmer.
- Compatible Machine: Holzer edgebander.

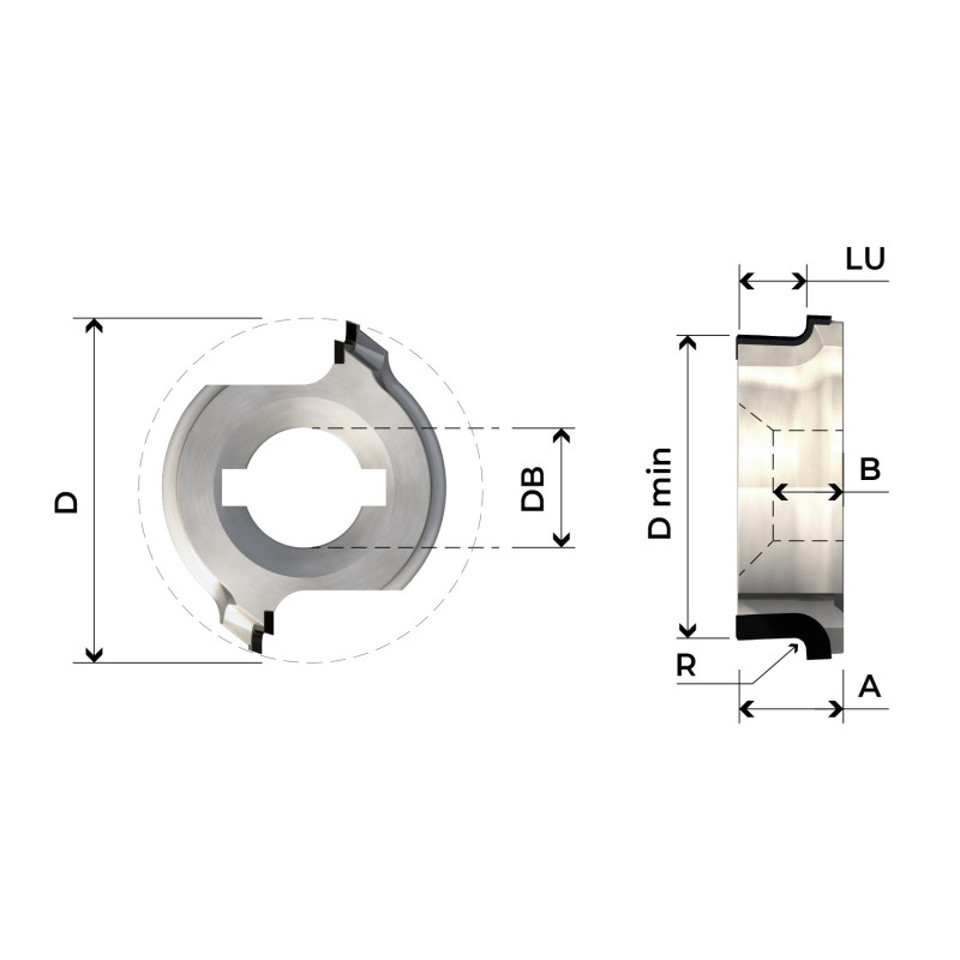

- Trimmer Diameter (D): 57.25 mm.
- Useful Cutting Length (LU): 16 mm.
- Bore Diameter (DB): B20+2.
- Edge Radius (R): 2 mm.
- Tooth Configuration (Z): Z2.
- Rotation: Right-hand.
- Cutting Material: PCD (Polycrystalline Diamond).
Material Compatibility
- MDF.
- HMR.
- Plywood.
- Veneer and Delicate Coating.
- Solid Timber.
Machine Compatibility
- Edgebanders.
- Edgebander trimming units.
- Holzher compatible machines.
Recommended Application
Recommended for:
- Edgebanding applications.
- Machining MDF, HMR, Plywood and more.
Application notes:
- Confirm toolpath strategy for the best finish.
- Use appropriate feeds and speeds for the material.
